The Perfect Mixer [MOTU Ultralite AVB]

After looking around for the perfect mixer I choose a MOTU Ultralite AVB.
Drivers are pure shit, but if you use it as a standalone mixer it really rocks. Problem is, to control is using an iPad without computer you need to connect it to a router. I hate it.
Does anybody figured out how to control at least volume faders with a midi controller without a computer or other stuff?

hmm, I’m not sure what you are getting at? MOTU Ultralite AVB is an audio interface that has a mixing app on board. i.e. not a standalone mixer.

So you want to control this app on your sound card with an iPad? and w/o the use of a computer? Unless you can hook the soundcard directly up to the ipad than i’m not sure how that would work?

I mean, in order to use the mixing app and utilize all of the channels your audio interface offers you would surely have to hook it up to some sort of computer screen.

AFAIK you cannot hook a midi controller up to an audio interface and control midi parameters on an app supplied by that interface that is not yet even opened up on some sort of screen.

What kinds of instruments are you mixing? If they are all synths w/ midi i/o then you could even just buy a midi controller/midi hub and just map it all out. Then you could have a crossfader control the volume of ur synths.

MOTU Ultralite AVB is an audio interface you can also use as a standalone Mixer. You can control it via iPad if this one share the same network as as the router connected to the AVB.

I’d like to find a way to control the interface volume parameters with a MIDI controller directly

icic, well it has midi in no? IF the volume parameters can be controlled via midi, it will be in the back of the manual. All you would have to do is plug midi out of synth to midi in on interface and map midi parameters using midi controller software…then you can “set it and forget it” and just use the midi controller… If ur midi controller is over usb then you will have to purchase a midi to usb converter (like a Kenton one).

Read interface manual and see if it accepts midi cc messages from midi controllers, if so, then you can proceed from there

Sry if this was not helpful, perhaps I am missing something :slight_smile:

Looks like it prefers OSC (not MIDI) for such functionality, unfortunately.

according to Appendix E (pg 83) of the manual

MOTU AVB audio interfaces support OSC, which provides remote control of all device settings and mixer controls from any OSC-enabled controller.

For further details about remote control through OSC, along with complete documentation for the MOTU AVB OSC API, visit:
http://www.motu.com/avb#avb-osc-support

This is the only mention of remote mixer controls in the manual.

If your control app or hardware supports OSC, you’re in luck. Otherwise, you may want to seek out MIDI to OSC conversion options.
Good luck.

1 Like

I have the MOTU Ultralite AVB. It’s abstafuckingfantastic.
I have no problems with the drivers whatsoever.

As for controlling it w/o ipad or iphone, why not just use the webapp? Or, are you using it ENTIRELY off the computer?
If so, then maybe make presets or something and load those?

2 Likes

For those who would read that while searching some information before buying : since a firmware update, a bit later than this thread, they made possible to plug it directly to an iPad using an ethernet adapter. I just get mine and tried it : it works quite well ! So that’s really awesome for a real DAWless setup. :slight_smile:

2 Likes

Hey, can you tell me a little bit more about how this works? Btw, are you still using it? I’ve gone as far as reading the firmware change log and have learned nothing :expressionless:

Do you mean you can control the ultralite avb mixer from the iPad by a direct wired Ethernet connection between the iPad and AVB?

If yes, would you need to (or can you) combine that with the usb connection to use the Ultralite as the audio interface to the iPad into AUM or Auria?

From what I’ve read when connected to pc/Mac you can access the mixer via the web host and use the audio interface at the same time on a single usb or Ethernet cable, but from an ipad it would be usb for audio only, and the AVB would need to be wired to a wifi router for the iPad to find it via the discovery app.

I’ve been searching for audio interface options for the iPad /PC that are truly standalone, and have midi i/o, have enough ins and outs, and are reasonably compact. The options are few. (Currently thinking a separate midi interface plus a tc helicon blender might work best for this as a cheap and cheerful solution at half the ultralite avb price).

Can you do basic mixer stuff on this from the front panel, like setting up fx sends and stuff?

Thanks.

Hello ! Indeed I was talking about controlling the internal mixer from the Motu Touch Control App on the iPad. That’s useful, especially because mixer params are not accessible from the front panel.

At first I used an ethernet adapter and plugged it physically, but turns out, it’s easier and more reliable by WiFi, so I plugged a small Wifi router on the back of the Motu. I already though that it was great… But your message make me realise that it’s compatible with iOS… I never payed too much attention to that, but it opens a lot of new possibilities. Thanx !

I’m not home right now and can’t test it, but I will and tell you asap. I was looking for an audio recorder, to record my live session, I think it should work, also using the Korg Monopoly iOS app without connecting it to an audio input and using a bus should work as well ! Enven multi track recording should work… Sounds really really good ! Hope it will works as expected… It seems that Audiobus app can allow me to route the input / output to the right app, do you have any information about the way it works on iPad, can you confirm ? Anyway if this works, it should be totally possible to use the the different App to control the mixer and record at the same time as they don’t use the same way. Mixer control is just web APIs accessible by the network… Looking forward to try it :slight_smile:

I always felt like MOTU missed a trick with the last generation of Ultralites. If would have been amazing if they had implemented MIDI control of the mixer for standalone use.
Even just of levels and sends. If would have been great to be able to just plug in a little faderfox or similar for a nice wee configurable live mixer!

3 Likes

Thanks, will be very interested to learn if you can have it as a usb interface on ipad and access the onboard mixer from the same iPad. I think I’ve read comments that have said that doesn’t work, but maybe they had it set up wrong.

Basically all I want to be able to do is sometimes just have the iPad as a midi sound module attached to a mixer, and at other times have all hardware routed into the iPad as an audio interface, without having to muck around with repatching cables etc.

Shame the ultralite avb has no front panel mixer controls, I think that only applies to the older models.

Has the Utralite line been discontinued? I can’t find the mk4 in stock anywhere. Are there any other roughly equivalent products(8 in audio interface/standalone mixer)?

I’m looking at the k-mix but I’m not sure I’m ready to pay the $700 it costs here in japan, and I’ve also heard the windows drivers aren’t the best.

Depends on your region but not in the US:

Perhaps they’re having some delays in shipments due to covid
Shops like B&H, GC, ProAudioStar, Perfect Circuit all have it listed but have it back ordered.

I’m in japan. Some stores even say the product has been discontinued on the product page. Hopefully just the delays. Oddly enough many stores still have the mk3 and are selling it for basically the same price.

Is the mk4 a significant upgrade over mk3 hybrid?

Mk4 is class compliant. Mk3 is not.
Mk3 works with a mixer (CueMix) whereas Mk4 is based on a web based app.
I believe there is a quality difference. Not tested though.
I have had Mk3 for the last 4 years and it is rock solid with my Mac. Reknown drivers under Mac.

1 Like

Got it. I’ve got a lot to think about. I’m not liking this business of choosing a mixer and audio interface at all.

2 Likes

The local MOTU retailer here is saying Ultralite mk4 is out of stock due to parts availability, and they’re advising the Ultralite AVB instead. They’ve “been allowed to sell the AVB at the same price as the mk4” due to this situation, they say.

1 Like

It’s so painful isn’t it. I think the ultralite avb would be my choice if the pres were on combi jacks and it had the front panel mix controls of the mk3. Gotta be class compliant though. 828es is tempting for not much more money, but ultralite form factor is nicer.

90% sure I’m going to grab a TC Helicon Blender for my small iPad setup, it’s essentially a 6 Stereo in 4 stereo out monitor mixer, that’s also 12x2 ish interface.

One of these :slight_smile:

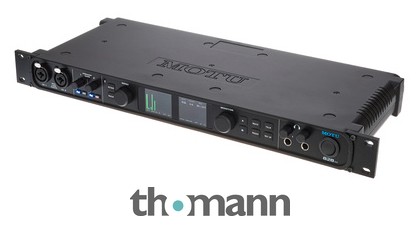

Indeed, I finally caved yesterday and ordered the 828es as a replacement for my non-Catalina-compatible TC Konnekt 24D with a noisy headphone pot. Initially wanted one of the Ultralites because of the smaller form factor. But extra inputs, dedicated monitor and headphone controls, and the fact that the interface it replaces hasn’t actually been out of the house much were deciding factors.
