Spring Reverbs

The best spring reverb I’ve used is in the echofix EF-X2. It’s better than my previous standalone vermona spring reverbs and IMO way better than the grandmother spring reverb. Funny, because I bought the unit for the tape echo but the spring reverb is insanely good. I spoke to Shane the owner of exhofix and he said they custom designed the tank with accutronics.

3 Likes

For those who might wonder how the Moog Grandmother sound when used as the main reverb in a track, check out this little jam:

2 Likes

you can open up the Grandmother and put in a larger tank for more springiness…

I think I have to open mine anyway as it seems the springs are getting blocked on some frequencies since a few weeks. Might need some cleaning inside …

I made a no solder DIY spring reverb. It’s not very pretty, but this is MKII - by far, better than my first attempt (sound wise).

A little taste of a 707 rim hit while slowly adding the FX send.

The trick is really 1. getting the agitator to properly move the spring which probably requires a bit of extra amplification, and 2. getting a good signal from the spring.

Anyone know a super small/compact amplifier? Currently using a little amplifier effect box I had lying around.

My first attempt had way too much noise. The pickup was too big. I went with a much smaller one this time. The signal seems really nice.

6 Likes

Dat sht be dope.

1 Like

Some people use headphone amps or record preamp. I have used one channel of a mixer with the gain high and the fader low and then out of the direct out into another channel.

1 Like

Huh that is sweet! Pretty smooth sound for a spring actually

What kind of agitator/transducer/make-spring-vibraty-thing did you use? How much watt is it receiving? How are you picking up the signal from the piezo?

Sorry for blasting you with questions hahaa. Played with the idea of making a tiny plate reverb for metal clangs, but haven‘t gotten around to it

I‘ve read – or heard on some video? – that reverse-using headphones instead of piezo pickups makes a smoother treble for some electrical reason.

1 Like

I’ve been wrestling with this idea of getting a spring reverb for a while now. I was on the verge of selling most of my equipment to fund a Syntrx because it simply has one integrated. But my desire for digital synthesis cordoned off too large a chunk of my budget to manage it.

I really wish that The Dust Collector had a more robust overdrive/saturation section. If it did, it would be the perfect option. Having distortion, delay, phaser, and spring reverb all in one analog unit (with CV control) would be outstanding.

Cool looking reverb.
Thinking about your challenge in actuating the spring;
-I’ve often used headphone amps that I remove from consumer electronics (walkmans, TVs, dead laptops, etc) which are great because they’re low voltage and current, small, and usually stereo. The problem with them is that they are usually designed to power higher impedance drivers so in a way it’s more about finding an amp and driver pair that work well together.
-The other suggestion I might make would be to make sure that your driver is optimally coupled to your spring mechanically. I’m not positive from the picture but it looks like you’re driving the spring with a small paper cone type speaker. The goal is to transfer as much of the cone’s kinetic energy to the spring as possible while not impeding the motion of the spring. The more efficient this transfer, the less power you need from the amp.
I don’t mean any of this critically, just sharing a couple of things I’ve realized while building spring verbs out of junk.

3 Likes

True-ish. The frequency response curve of piezo transducers heavily favors treble compared to a speaker wired in reverse (which is essentially a dynamic microphone).
Piezos are a lot easier to work with in this kind of scenario and the excessive highs can be rolled off with eq plus they have almost total isolation from all sound who’s source is not in physical contact with them making them highly controlled. I’ve usually (not always) found these aspects a worthy trade off but tiny speakers wired as mics sound more natural for sure.

3 Likes

I just used a super cheap little speaker. I superglued 2 tiny cut up pieces of a spring to it.

I could certainly believe that, but it might require more gain. I haven’t tried it yet.

That was completely my first approach, but for some reason it didn’t work well for me. I first used a small mono earphone, then resorted to the current speaker, but modified. No good results for some reason even though that’s how it’s always reported.

I resorted to testing this method with decent results finally.

3 Likes

Just ordered one of those light pedal thingies. Couldn’t resist the over-complex ridiculousness of the design. And the sweep function. Arriving at the end of the week. Will report back idc. once I’ve finished noodling with it. :slight_smile:

1 Like

I have had one for a bit now. It does great stuff to drums…. And guitar. Wasn’t so enamoured with it on synths. Definitely read the manual as there are some things that aren’t obvious from the front panel: eg: combining two modes, modulating via volume.

1 Like

Could you work it into the circuit of a Boss SD-1?
They’re stupid cheap 2nd hand, but may want to avoid the last few years production with their fiddly SMC’s. Then again, the SMC version leaves the inside of the pedal mostly vacant; for a spring or coil.

1 Like

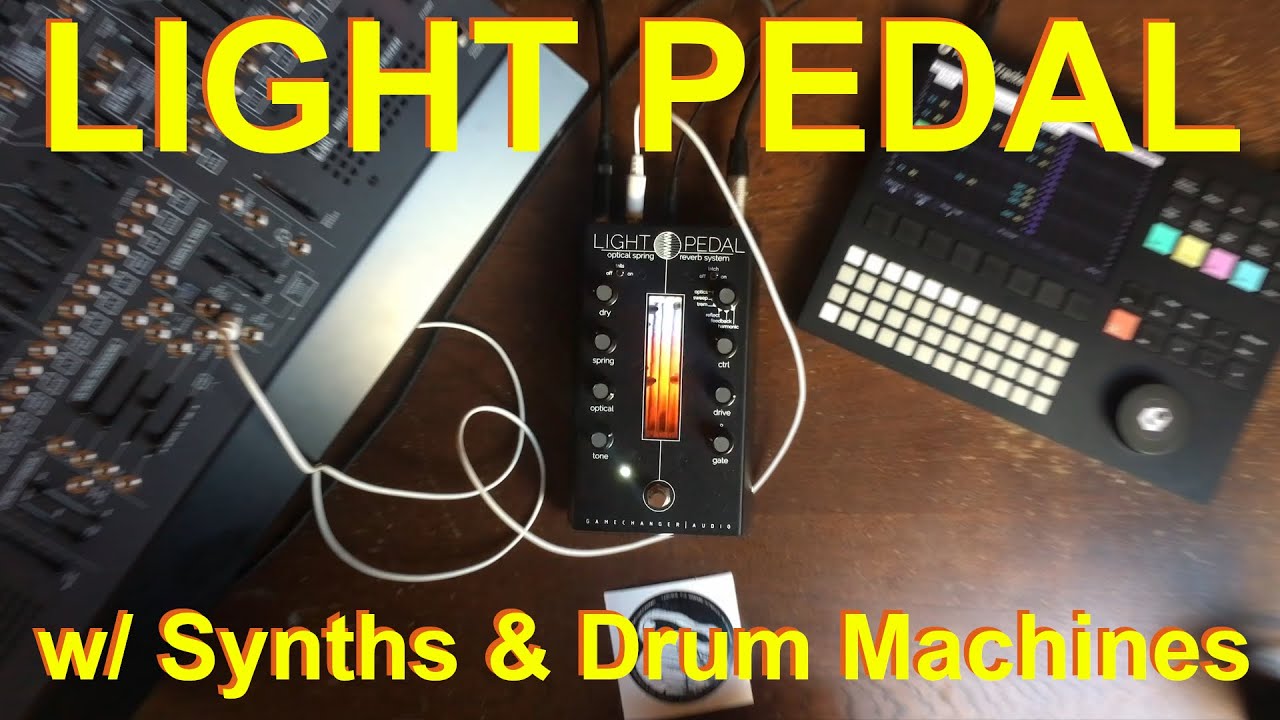

Hey there spring reverb folks ! I made my little demo of the Light Pedal, it will be online this evening at 18:30, feel free to come ask your questions :wink:

3 Likes

How are you enjoying this having lived with it for a while, @MattLxx ?

Not using it enough I think. May end up flipping. The “reflect” mode - a kind of lofi echo is very good. The rest of it…dunno. It’s really individual and technically impressive but I’m drawn back to my Knas Ekdahl Moisturiser for stupid reverbs at the moment.

Here’s my write up from a little while back What's your latest purchase & what are your intentions with it? [pics ftw] (Part 2) - #356 by MattLxx

1 Like
