Software MIDI Patchbay on OS X (MidiPipe)?

The Lounge Other Gear
1

I’m still trying to finish my “Modular Studio” (those of you who’ve seen my desk know what I"m talking about).

I was thinking about using a TRS patchbay and wiring the 3 “important” MIDI wires to a TRS plug and then using it to patch MIDI around. I might still do that.

In the meantime I was trying to find a way to quickly route MIDI directly from one MIDI interface to another via software (Sans DAW routing).

I found this useful tool:

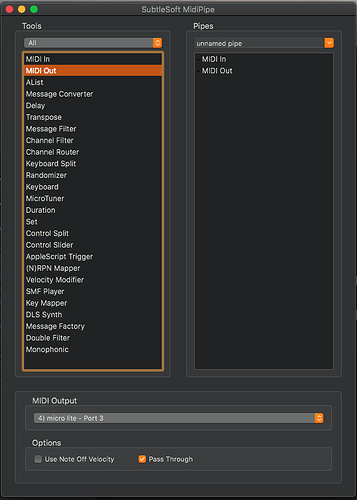

Screen Shot 2020-12-30 at 4.17.15 PM
Screen Shot 2020-12-30 at 4.17.15 PM585×818 49.3 KB

http://www.subtlesoft.square7.net/MidiPipe.html

It looks actively cared for and even supports ARM processors already.

It’s freeware with a donation button on the website.

You can setup a bunch of different virtual routings direct from one interface to another and do a lot of different things to the MIDI on the way. Then save the whole thing as a preset. So, different configurations for different setups as needed

Anyway, it looks very useful and I thought I should share.

Here’s a list of the interesting tools to keep you from having to click to the website.

Tools
• MIDI In - connects a MIDI input to the pipe
• MIDI Out - connects a MIDI output to the pipe
• AList - outputs messages to the screen
• Message Converter - converts messages from one type to an other
• Delay - delays the time for when the message is scheduled
• Transpose - transposes note to multiple keys, set velocity, delay and channel for each
• Message Filter - filters by messages
• Channel Filter - filters by channel
• Channel Router - routes channels
• Keyboard Split - moves note on/off messages above/below a split point to a different channel
• Randomizer - randomly changes any parameter value(s) of any channel message(s)
• Keyboard - play a on screen keyboard with your mouse or keys; will display arriving messages too
• MicroTuner - apply different scales
• Duration - add a delay between Note On and Note Off messages
• Set - set any parameter value(s) of any channel message(s) to any value
• Control Split - inverse, limit, scale, fade in/out, route and map MIDI controllers
• Control Slider - simple slider for control message input
• AppleScript Trigger - use the power of AppleScript to implement everything you want
• (N)RPN Mapper - map (N)RPNs
• Velocity Modifier - scale, shift, clip and filter the velocity of Note On and Note Off messages
• SMF Player - plays up to 128 MIDI Files; handles Song Select, Start/Stop/Continue messages
• Key Mapper - map keys
• DLS Synth - user interface for Apple’s DLS Synth
• Message Factory - trigger your own messages with static and variable data bytes
• Double Filter - filters identical messages
• Monophonic - make monophonic

3 Likes
2

MIDI Pipe is good but I often seem to have problems running it, although the current v1.6.1 seems stable. When I do have problems, I usually turn to MIDI Patchbay:

1 Like
3

Yeah, I saw that one too but it only runs on 32bit OS X unfortunately. Which means I’d have to compile it for 64bit and probably change code and stuff.

I haven’t used MidiPipe until now so thanks for the heads up on possible problems. I’ll be careful not to rely on it at first at least.

1 Like
4

Does anyone know the Windows 10 equivalent please?

5

MacOS, available from the App Store for free:

  • MIDIThru
  • midi Patch
  • Milky (does more than just patching, key split, filtering etc)

Available from somewhere else:
MidiPipe (download on their website)

6

If you ever want to not rely/depend on a computer and get a powerful programmable MIDI box I wholeheartedly recommend the Midihub from Blokas. I really love mine, can be a MIDI router, splitter, filter, has MIDI FX, etc.

Just in case you ever want a dependable standalone piece of gear to do all kind of MIDI-related stuff.
