Do you know if there is a diagram of the MD’s voices structure? I mean, the synthesis chain that underlies the voices (oscillators, filters, fx, envelopes etc …)
Thanks

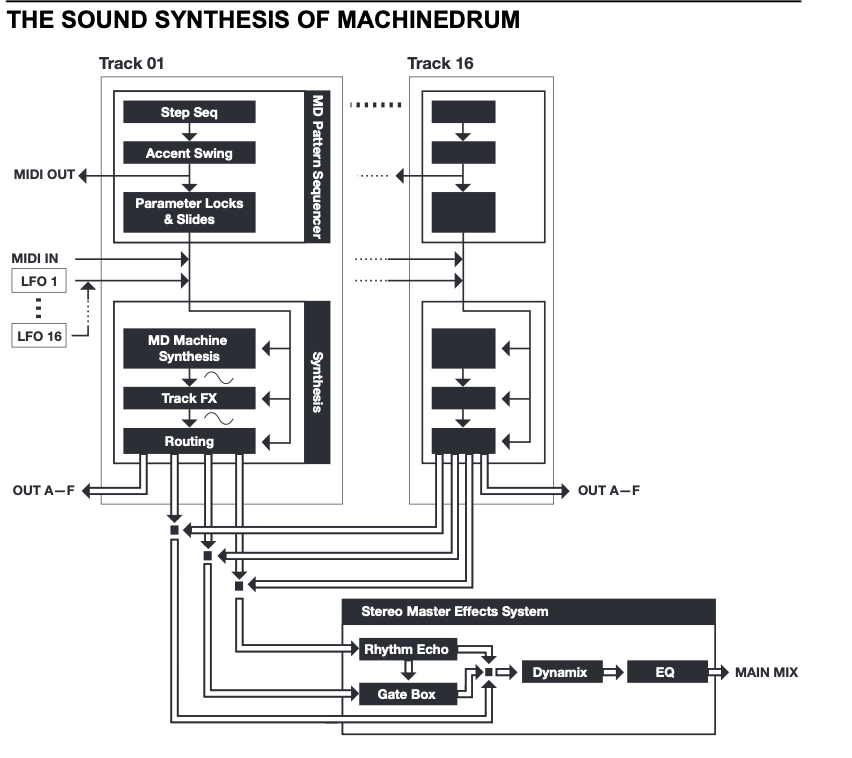

i know this diagram but i’m curious about the synthesis chain, which kind of waveform, filter, amp etc…
each machine is made differently, playing them is the best way to work it out.
have you got an md or trying to make something similar?
all tracks have the same multimode filter, envelopes can be done in some machines or via LFOs/plocks.
i have a MD
but I would like to study the dsp. I’m a manufacturer of an eurorack module which has 3 synth DSP alghorithm + 1 for the samples and 4 voices www.faselunare.com
4 Likes
Depending on your knowledge of each kind of synthesis used in the Machinedrum you should be able to get a rough grasp on the construction of each machine by looking at the Machine Reference (Appendix A) in the manual
If you are interested in the PI machine (physical modelling with waveguides) there is a paper by its creator (and Elektron co-founder…) available here:
https://publications.lib.chalmers.se/records/fulltext/5768.pdf
I could have sworn I had a paper by the author of the EFM machines as well, but I can’t find it anymore… Should be in the Chalmers vaults somewhere.
34 Likes
Well, here we go…
But sadly looks like you’ll have to check them out from the library somehow.
25 Likes
unfortunately it requires login details which I don’t have, but thanks for finding it.
Sorry about that. Updated with the correct permalinks.

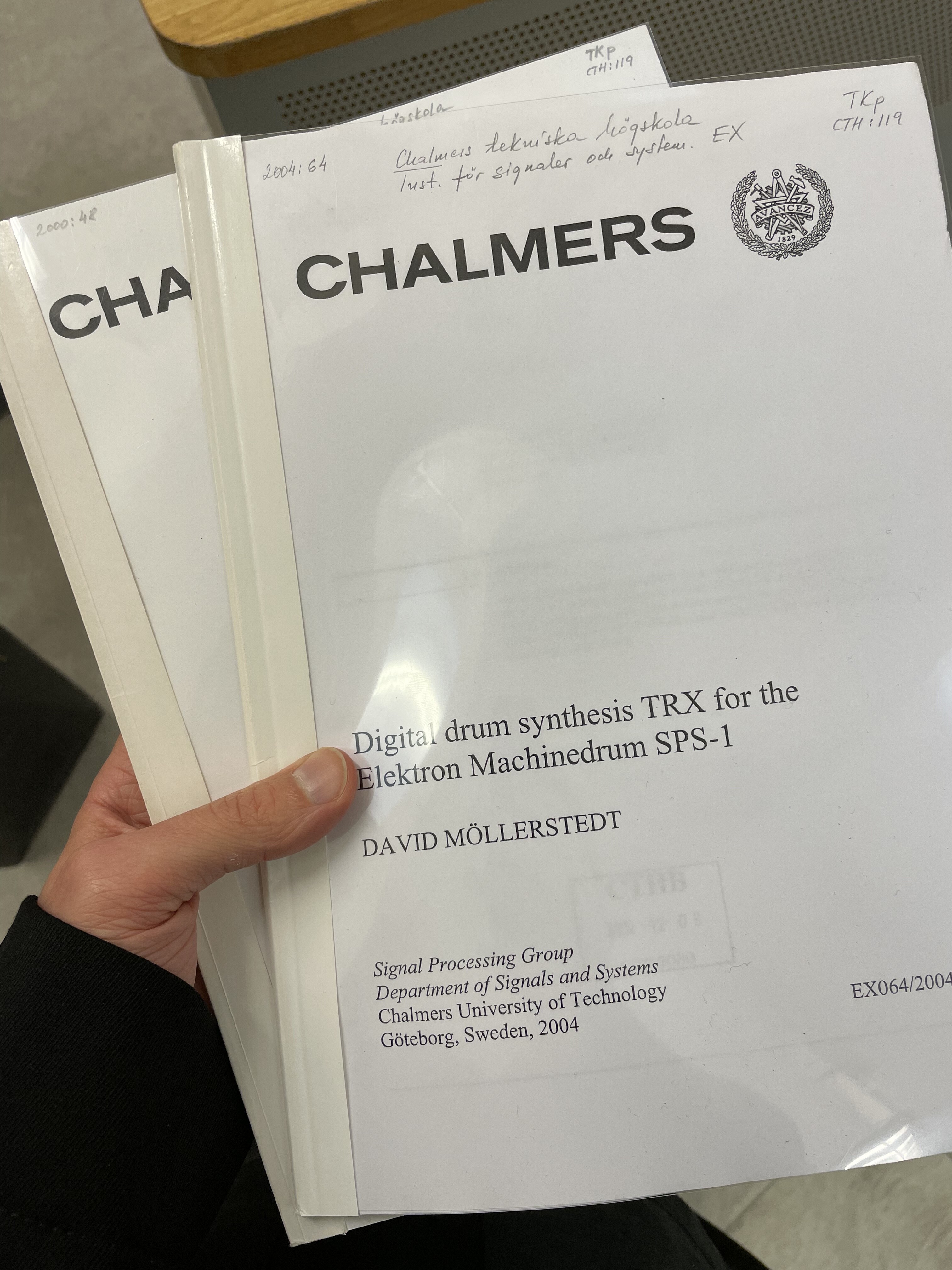

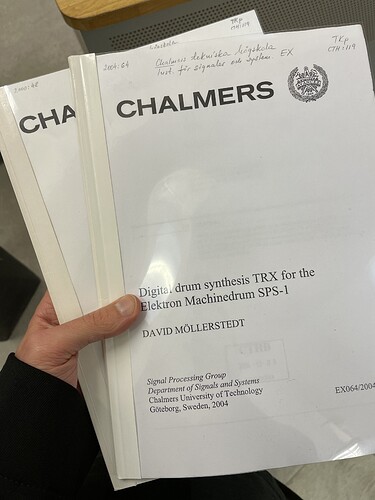

The TR-X paper is called “Digital drum synthesis TRX for the Elektron Machindrum SPS-1” and is written by David Möllerstedt
The EFM paper is called “Syntes av trum- och percussionljud med hjälp av frekvensmodulering”, which translates to “Synthesis of drum- and percussion sounds by means of frequency modulation” and is written by Erik Larsson
Fun fact, David Möllerstedt went on to found Teenage Engineering and Erik Larsson, I believe, now makes the Lekholm DM48X MIDI harmonica.
18 Likes
Yes, these are papers written by the various developers behind the Machinedrum. They’re not available online besides these database listings, but it looks like you can check them out at the physical Chalmers library in Gothenburg. I’m due a visit this summer so maybe I’ll take a peek.
10 Likes
Due to unforeseen circumstances I found myself in Gothenburg this afternoon.
Will compile the PDFs very soon. The TRX one needs some translation.
They are both much more in depth than I though, super exciting.
44 Likes
Tack gud för ”tvångssvenska” här i Finland!
(Alltid tyckte om svenska faktiskt.)
Really looking forward to having a look at the PDFs! Thanks @Ess!
3 Likes
This is the news! Can’t wait for the PDF! Thank you for your trip to Gothenburg!
1 Like
Here we go.
efm.pdf (2.3 MB) trx.pdf (3.3 MB)
So actually what happened was that I was in Stockholm over the weekend but my flight on Sunday got cancelled – the best option I could find was to take the train to Gothenburg and fly back home from there. So naturally this was a great opportunity to scan these papers.
Unfortunately the TRX scan is a little wonky at parts, should have used a flat bed scanner in hindsight but I was in a hurry and the overhead ones they had in the library were really quick to use.
Both are in Swedish, I would like to translate these as I think they are historically important as well as a good resource.
But even if you don’t know Swedish there are a lot of cool parts - surprisingly the TRX paper covers a lot of the Motorola 56303 assembly implementation! The FM paper has a lot of nice tricks and signal flow diagrams as well.
I converted the scans so that the text is machine-readable so hopefully one can get by with some auto translation for the time being.
46 Likes
Hear hear
Many, many thanks for scanning and posting these. I would like to translate these as well so if I can help you in any way (native English speaker) let me know.
4 Likes
My pleasure!
I’ve been obsessed with the Machinedrum for so long that it was a treat for me as well. I think it’s such a unique machine and endeavor that transcends the company itself in some ways, it has a cultural and technical impact that is quite rare.
Also just thinking plainly about the time and circumstances of it as a project and product; it came from a fresh, tiny company that were comprised of (mostly) a number of college students with a vision that is still unrivaled today. If you would come to any music tech company nowadays with the same specifications they would turn it down immediately for being too risky and ambitious.
I think about that a lot, it’s almost a miracle that this machine was manifested at that point in time and place. So many visionary and talented people came together to make this happen, and they executed that idea beautifully.
(EDIT: in fact, I read the initial spec/concept of the Machinedrum and every bit of it was as ambitious and visionary as you would imagine. It didn’t just happen, someone set out to make the most advanced drum machine ever, basically. I love how bold that is)
27 Likes
@Ess thank you for scanning!

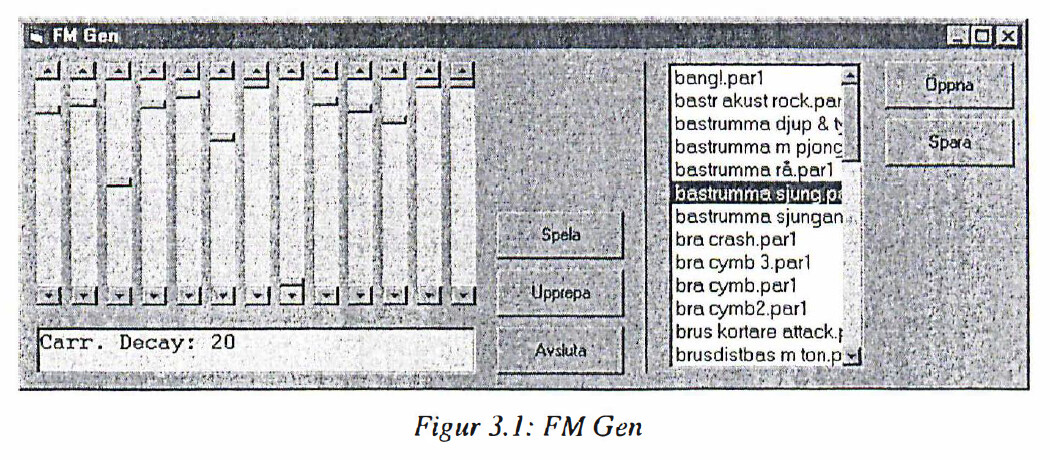

I find it super interesting that there is no mention of band-limiting in the FM paper. Are the MD FM oscillators really just raw sine table lookup?
Ljudgenerering i Machinedrum sker med hjalp av en Motorola 56303 DSP, klockad pa 100 MHz. Denna processor skall kunna berakna 16 olika trumljud samtidigt, med samplingsfrekvensen 44.1 kHz (innebar max ca. 130 instruktioner/sample).
Ytterligare en 56303 skater mixning av de 16 kanalerna och effekter (bl.a. lagpass-, hogpassfilter och ringmodulering for varje kanal samt EQ, delay, reverb och kompressor pa mixen)
This is super interesting, the DSP budget is really tight. I guess this rules out any kind of advanced oscillator implementation.
1 Like
So true, even today there is no drum machine with equivalent functions, the closest being the Octatrack but obviously no drum synthesis.
Really interesting to see these documents, many thanks for posting them.
1 Like
