FMR RNC or RNLA on master

The Lounge Other Gear
#71

Perfect - will try to find one ASAP!

#72

6 posts were split to a new topic: Originally not in the appropriate subforum - please, strictly no selling there

#73

RNC in normal mode adds a lot of character and color. The Super Nice Mode basically eliminates that.

#74

a bit more expensive, but comes pre-made with XLR connections (still not ideal, of course… ):

Also, if dobermate doesn´t want your FMOD HPF, I might be interested - located in Germany.

#75

Many thanks for the offering, really appreciate it, but I managed to find a pair on ebay that shipped to Sweden as well - very excited about trying this out :).

Discussions like this really makes you feel like stating the obvious about this forum being the hands down best forum I’ve ever been to - so helpful, including, warm and knowledgable! Please let’s keep it this way!

:heart:

3 Likes
#76

Hello everyone. Thanks so much for all the valuable information in this thread. I’ve been doing a lot of research on compressors & elektron boxes and wanted to share my findings for all future fmr rnc sidechain researchers.

I had a couple of requirements for the setup:

  • have the ability to create a pumping sidechain effect for my synthesizer basslines and pads
  • support my setup with analog four, rytm and octatrack
  • have the solution be portable enough to fit in a (big) shoulderbag

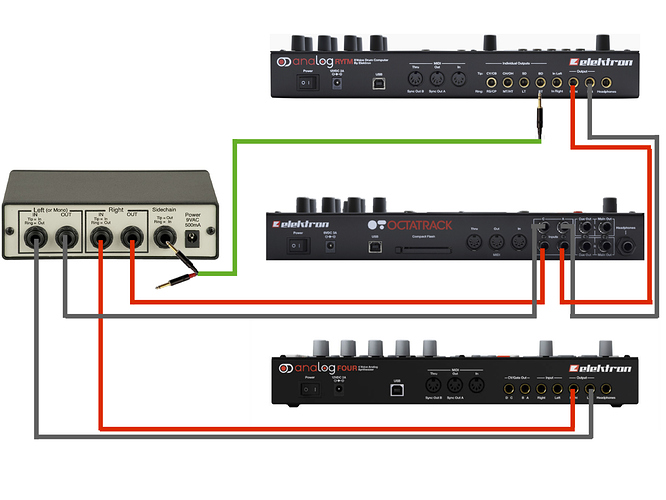

in the end I settled on getting the FMR RNC 1773 and setting it up in the following way:

fmr-rnc-octatrack-rytm-analogfour
fmr-rnc-octatrack-rytm-analogfour.jpg2133×1600 382 KB

first of all, be sure to check out the comprehensive video on this topic by slenterendebeer, they did an amazing job explaining a lot of the compressors details: https://www.youtube.com/watch?v=5Hr5LKARioQ

In my setup, I’m using the separate kick output from the rytm as a clean sidechain control signal, which makes the bassline and synth pads from the analogfour get ducked when the kick hits. This creates that signature bouncy dance music feel. Because the signal that gets ducked does not contain the kick/drums yet, I don’t run into any problems that require the (excellently executed and documented) FMOD highpass filters or eq solutions as described by fulano47 ( https://www.gearslutz.com/board/showpost.php?p=12597812&postcount=31), brucewayne (FMR RNC or RNLA on master) and the slenterendebeer video.

You can view and listen to this live setup in action at the following (exaggeratedly pumping) video snippet:
https://www.instagram.com/p/BviEi2hInCP/

To complete the setup I am now investigating whether or not I want another compressor on the end of the master chain, but currently I’m ok with either the compression of the octatrack master bus or the analog rytm’s compressor at the end of the chain, if im not using the octatrack =)

10 Likes
#77

Nice ducking in your vid.

So what happens say if the BT is used for like the lowend of a layered kick? It’s squashed too I’m assuming…

#78

in this specific setup, the BT channel is not connected (its the unconnected dangling jack near the sidechain input). It would therefore not trigger the compressor through the sidechain input. This would mean the sound of the BT would just be added on top of the mix as if the compressor was not connected at all

#79

And get squashed by the kick then right? Or seeing as how its at an even lower frequency would pass through?

Thanks for your answers. Been meaning to try this without the FMOD.

#80

you can do side-chaining with the RNC 1773 my friend

#81

Yes. But Im curious about what happens to the BT sound as its not being run through the sidechain input. Does it get compressed along with the rest of the mix or is it allowed through too?

I assume gets compressed but i wanted to check in case I misunderstood something.

#82

From the diagram it looks like only the A4 is going through the compressor, Rytm is going straight to OT.

#83

That’s exactly what’s happening. Only A4 is being compressed. A4 is doing bass and pads.

1 Like
#84

Bass and Bassdrums? fairly ok. i did not noticed very much pumping when i owned the RNC.
also i think, there would be not much left from the compression, if you use these recommended high pass filters. makes no sense to me

#85

Could you please elaborate?

#86

i’ll try to explain you with my bad english :wink: you can split the audio track that is going through the signal path of the RNC. you use a High Pass Filter in Ableton or any other DAW. then you route the EQ’d track from the DAW/Audio Interface to the Sidechain input of the RNC. viola! you could use this Method even with a Mixing console instead of a computer i think. no need for expensive FMOD filters. i did myself and it works great

1 Like
#87

Ah yes, understood. Thanks for clarifying. Different strokes for different folks.

#88

it was a pleasure to help you^^

1 Like
#89

Finally got an RNC
WOW!!!
It’s definitely got some magic sauce
I’ve just been using the OT compressor for a long time now
This thing sounds so warm and sizzly
Wanted the RNLA but I couldn’t pass on this deal, and it’s exactly what I wanted

8 Likes
#90

anyone tried this ? i’ll wait for damn month to get harrison from US. Can’t believe there is not something similar in europe.

Also, question about xpressor, if i don’t plug external source in to sidechain input, SCF filtering works on signal that is coming in to main inputs? 500 version doesn’t have sidechain external input, so i reckon it should work that way to.

@AdamJay, like your live set, bass heavy but smooth :+1::muscle:

Thanks
