Also tried with increased delay ticks? This parameter can take some time to fiddle around.
Then all is left to try is a midi interface that handles sysex well.
Rec format should be ‘none’ for sysex IIRC.
SDS Handshake - unchecked
Use Extended SDS - unchecked
Send SPS-1UW Name - unchecked
Tried with 5pin MIDI
Same result
I’m not sure if you precised it, how do you make your SYSEX DUMP from DN/DT?
I can give it a try today. I could send a pattern SYSEX a few weeks ago (DN, C6, USB, W8.1)

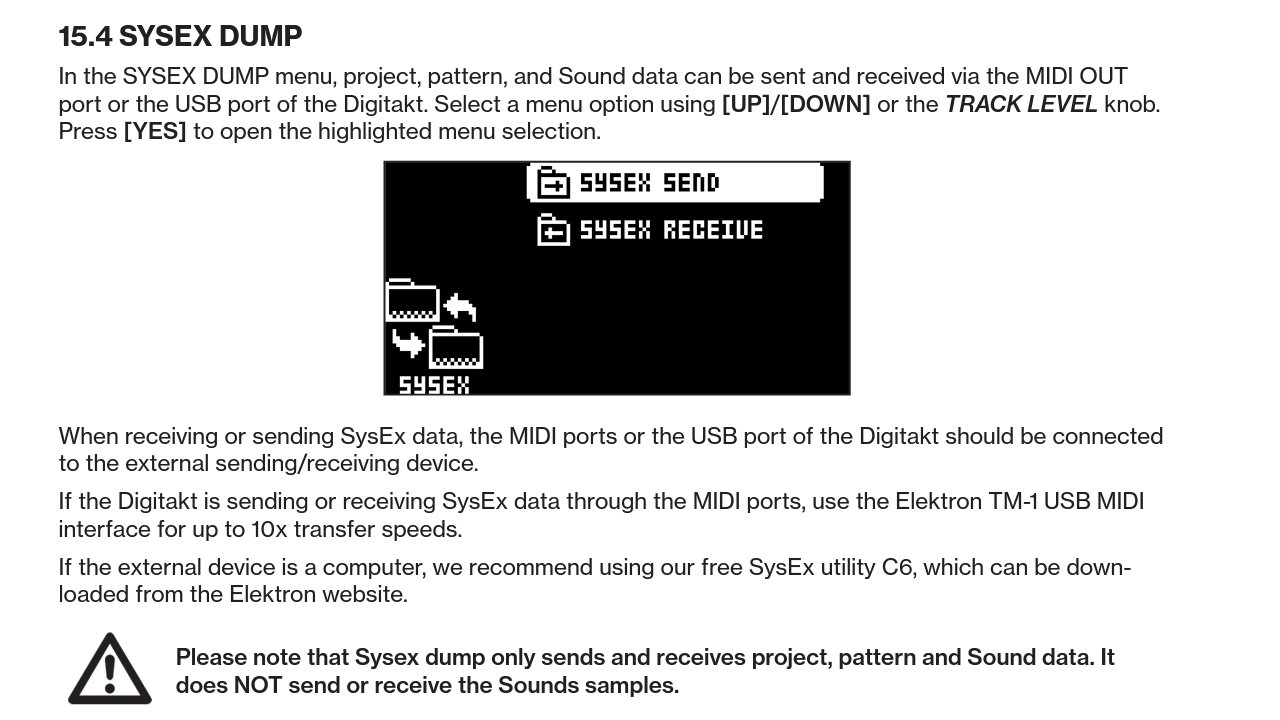

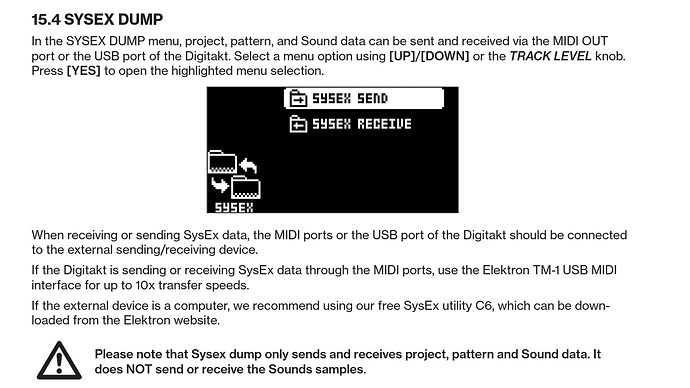

Like it was written in the C6 manual
Yes. This is how I do

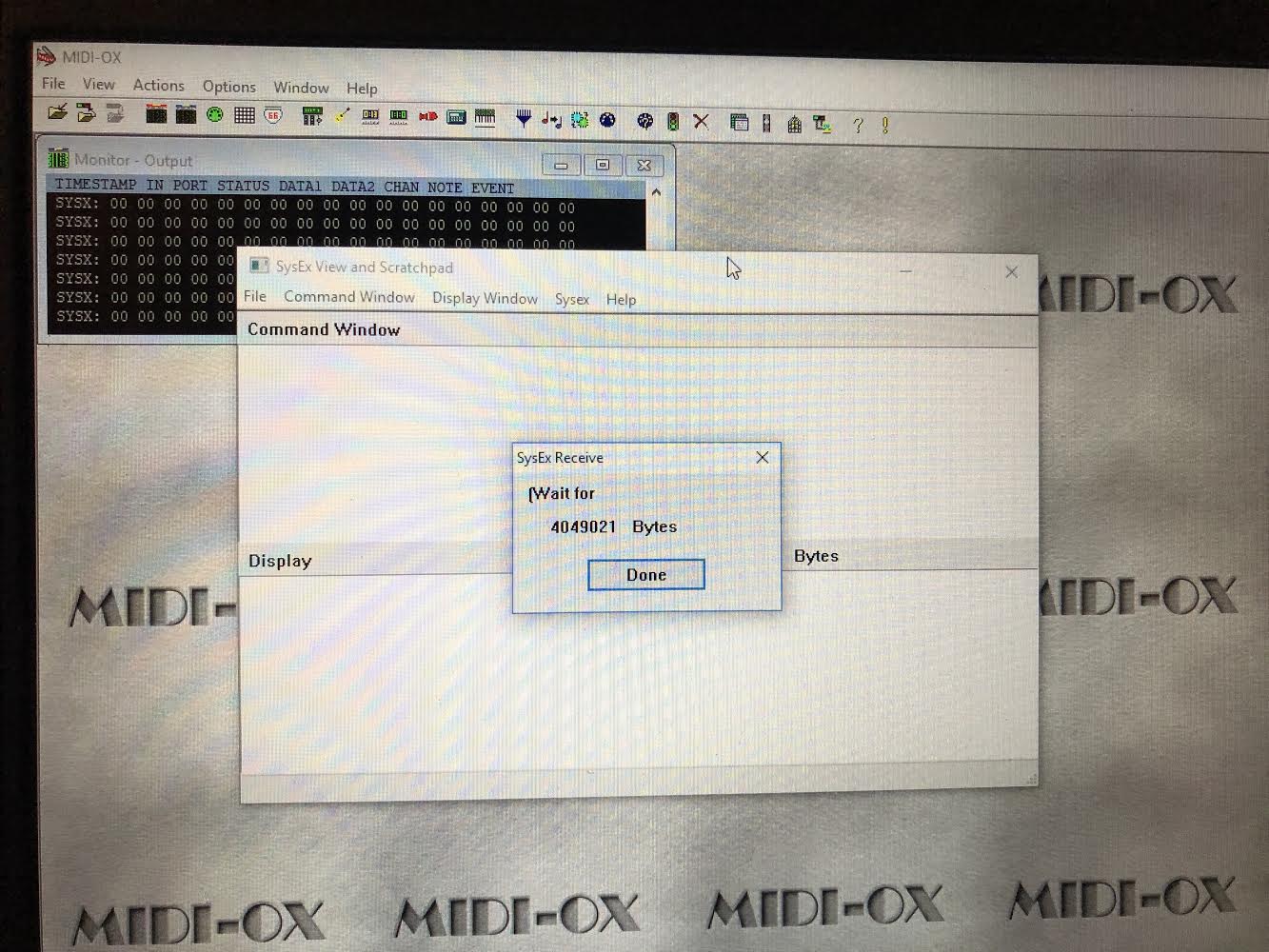

Sorry if it has been ask, but are other midi messages received? MIDI OX has a midi monitor function, and you probably can see SYSEX.
A project is around 4MB in size, doesn’t look like anything is wrong. You should be able to press ‘Stop Rec’ and save the resulting file from the C6 window. Sysex transfer doesn’t flag (afaik) that the sending device is done, so you need to stop receiving manually.
After pressing Stop Rec you should see a file entry in the C6 window. Highlight that by clicking on it and then press Save to save the data as a .syx.
(As for the settings, should be fine to set the delay ticks to 0, it’s a lot faster and shouldn’t cause any issues)
Good news! This is what helped! ‘Stop rec’ and voilà: the file revealed
Many thanks for this!
