Share your AHFX sounds

The AHFX is a great little beast once in a live workflow or tied to a DAW. I have seen but not tried to replicate true AHFX science madness where it’s used to create standalone music too.

Show us where AHFX makes a difference in your work.

1 - Upload an example or two showing what the AHFX adds to the sound, and what the material sounds like without it

2 - Share the AHFX preset or a guide to your setup and use case

This box is amazingly deep and I want a place where we can show off and trade techniques like the appreciation threads for other boxes. I hope there’s enough of us to make this A Thing :slight_smile:

5 Likes

Momentary shuffle

I like to use this to complicate drum grooves.

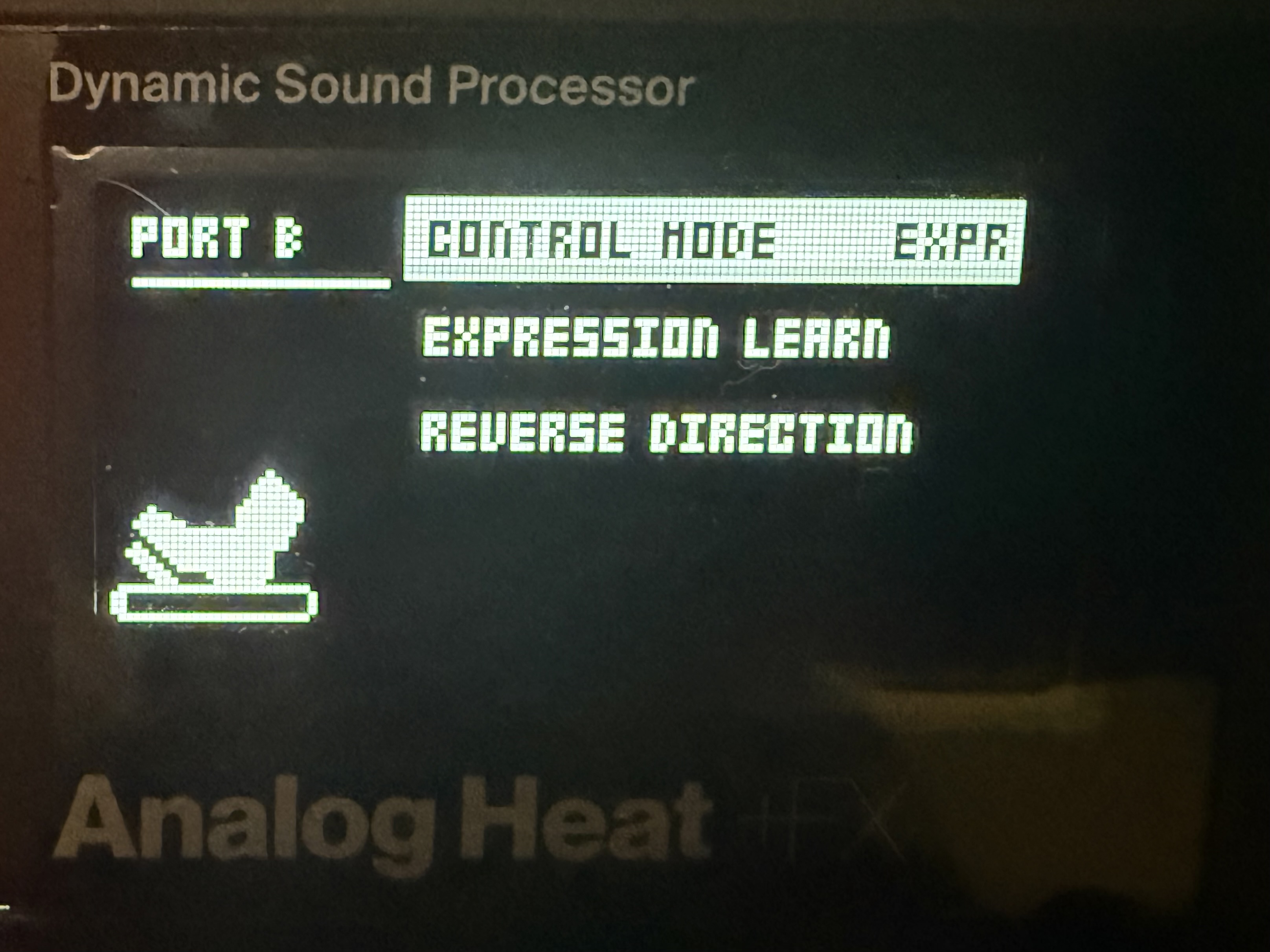

I have a momentary switch connected to control B, but I leave the control on expression mode. When I press the button, it ramps the delay send; when I release the send drops to zero and the residual delay completes its feedback cycle.

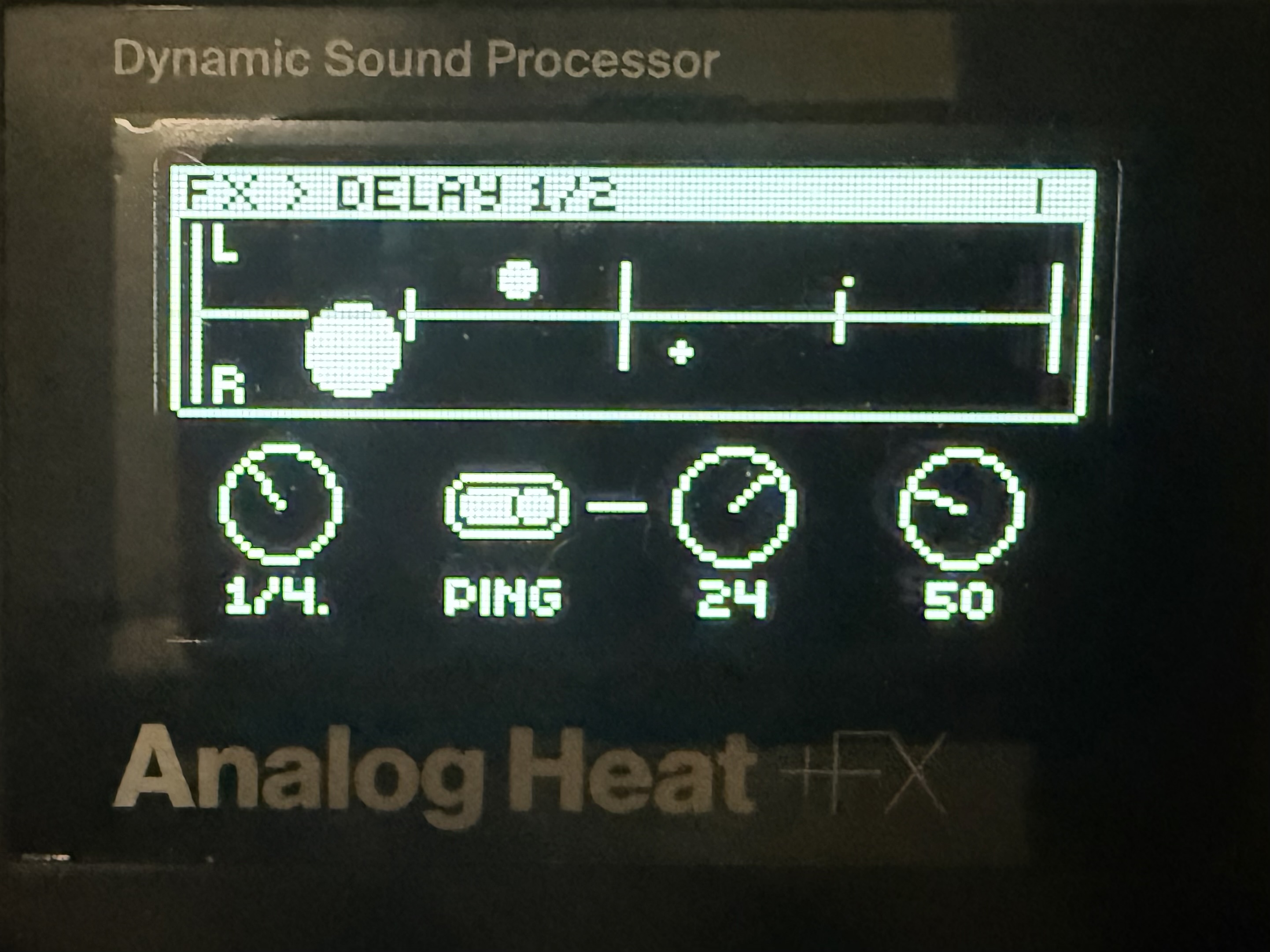

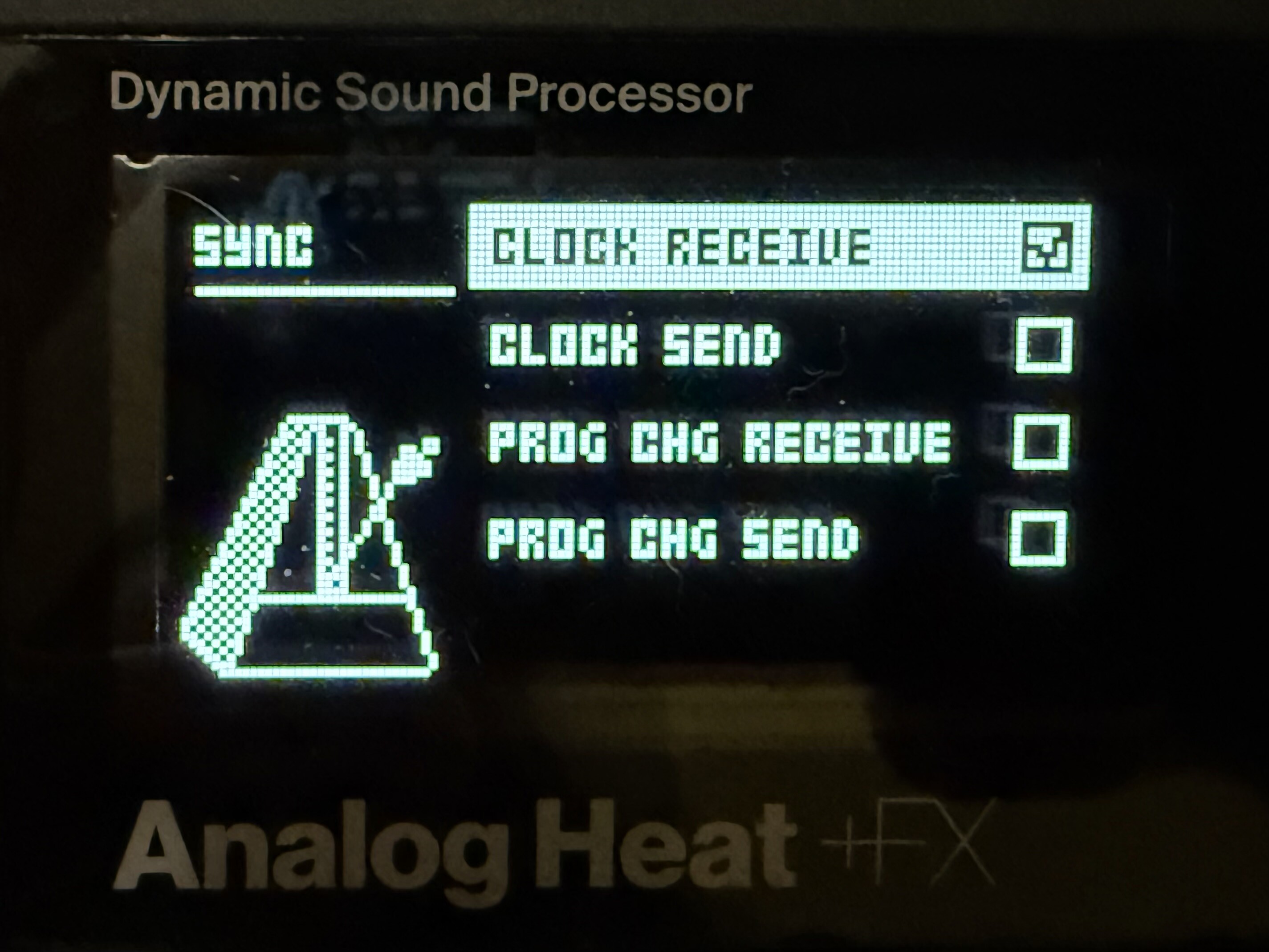

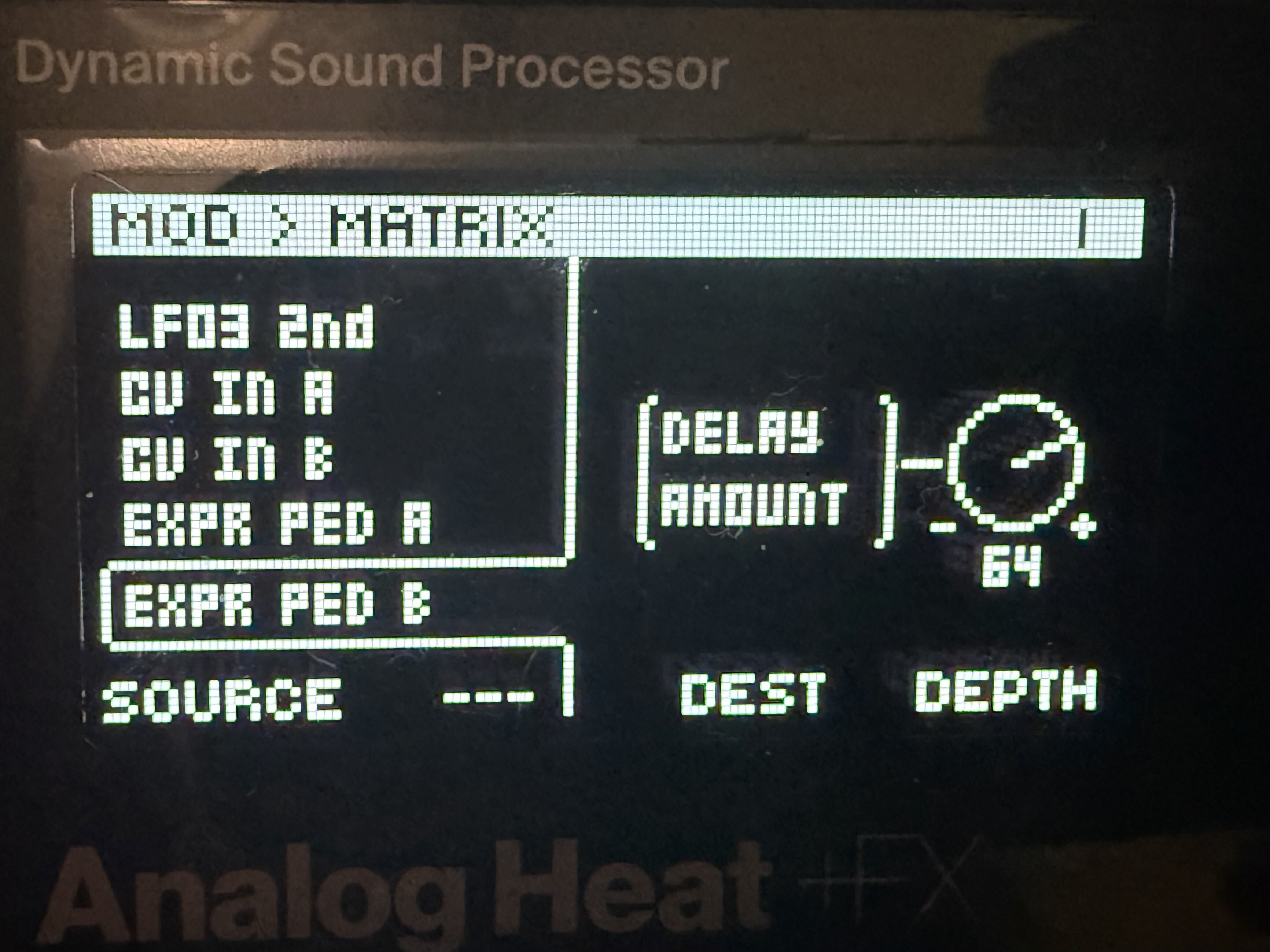

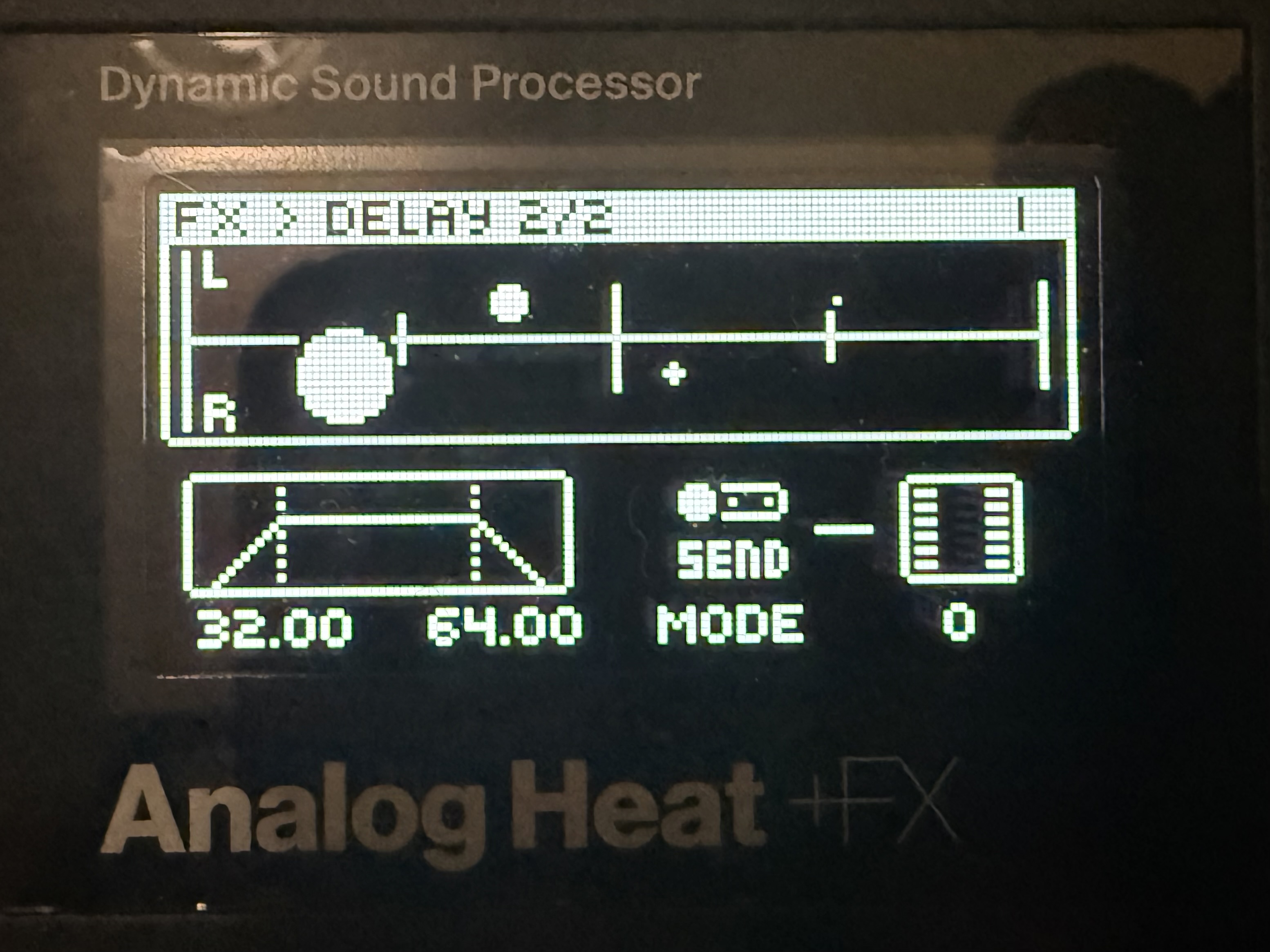

The AHFX setup:

In both audio examples the source is my Syntakt.

  1. Ahfx synced momentary delay A-B

    The first ~43sec (32 bars) is the dry Syntakt beat. I turn on the momentary at bar 33 (~44sec). I stop the Syntakt after bar 64 and let the delay feedback echo out.

  2. Ahfx synced momentary delay demo

    The first ~22sec (16 bars) is the dry Syntakt. I start pulsing the momentary switch to shuffle the beat starting at bar 17. I stop the Syntakt after bar 32 and let the delay ring out.

(Recorded from USB out on the AHFX to iPhone Voice Memo.)

5 Likes

Great use of the delay! Really like the second recording!

1 Like

Thank you :smiley_cat:

1 Like
