Quiet FX

Elektron Gear Analog Heat
1

I’m hoping someone can help me here. I have a AH+FX and the FX are extremely quiet. My set up is going from my mixer send to the AH+FX and back into an input on the mixer. All analog, no Overbridge.

The input signal on the left is just below peaking and I’m using the Delay effect set to Mix and 100% with all other settings as default (so I only hear the wet delayed signal).

With this set up, I can barely hear the delay and as you can see in the image the output signal on the right is barely there.

Main volume is fully CW and the Preset Config has Volume at 127 and Output Gain at +24db.

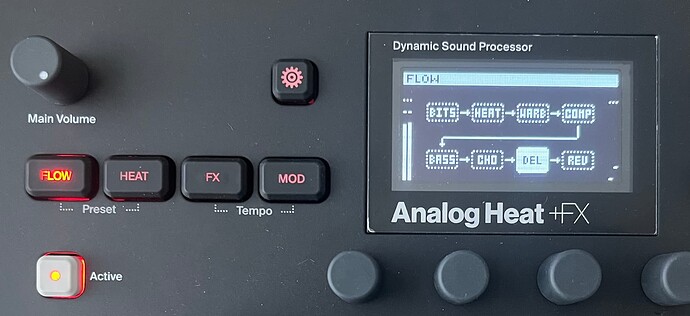

AH+FX
AH+FX1920×880 102 KB

If I switch off the Delay then the signal mirrors the input signal and is nice and loud.

Delay Off
Delay Off1920×967 116 KB

My question is, why is it so quiet when the Delay is switched on?

2

[Update] I was on OS 1.0.1 - just updated to 1.0.2 and things seems to be a lot more balanced. Nothing in the update seemed to address this but either way it’s working better now.
