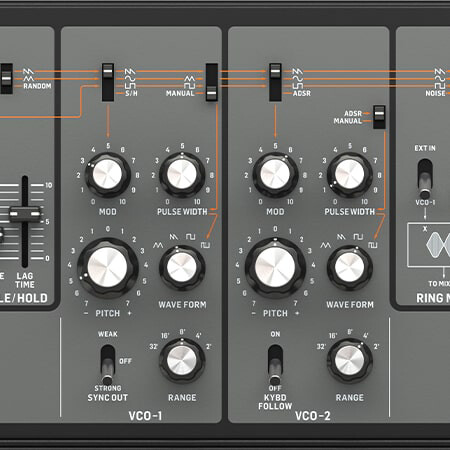

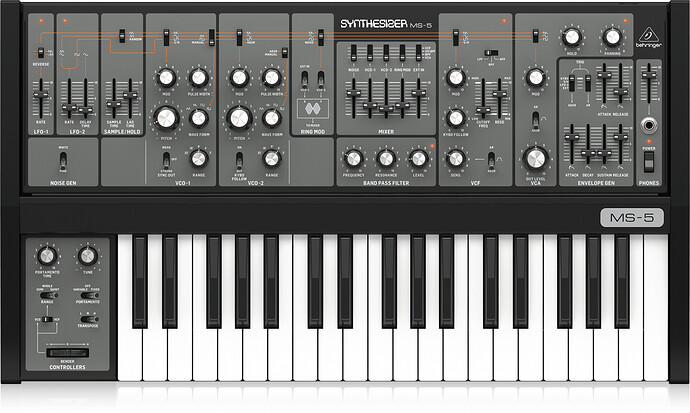

OSC-1 Controls: MOD amount, Pulse Width, Waveform, Pitch +/-, Range, Sync Out, Mod mod source Switch, PWM mod source switch.
OSC-2 Controls: MOD amount, Pulse Width, Waveform, Pitch +/-, Range, Key Follow switch , Mod mod source Switch, PWM mod source switch.
Filters:
Switchable between LP, HP + BP
LPF Type: 24dB
Filter Controls: MOD Source Switch, Mod Mount, Type Selector, Cutoff + Resonance Faders, Keyboard follow, Sensitivity
Dedicated Band Pass filter with Frequency, Resonance and Level controls
Mixer section:

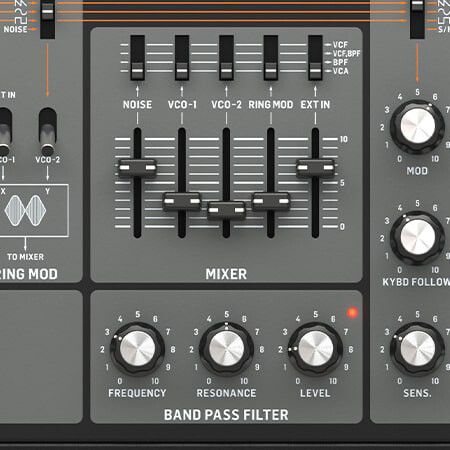

5 Part mixer section with choice of Noise, VCO-1, VCO-2, Ring Mod, EXT IN, with the choice of routing where they are going to VCF, VCF+BPF, BPF and VCA
Noise Generator: White or Pink
LFO Sections:
Number of LFOS: 2
Waveforms: LFO 1 Saw or reverse saw, LFO 2 Triangle, sign or square.
Controls: Both include Rate control with LFO 2 including a Delay Time
Sample + Hold: Sample Time + Lag Time
Ring Mod: Includes source and control selectors
Envelope Generators:
ADSR: Attack, Decay, Sustain and Release with Fader controls
AR: Attach and Release on Fader controls
Triggers: Selectable Keyboard, Sample + Hold, LFO-2 or Exteranl Audio to trigger the envs.
Performance controls:
Volume, Panning, Portamento time, Tuning, Portamento amount, Pitch Range, Transpose + Pitch + Mod Bender. Height
Connections:

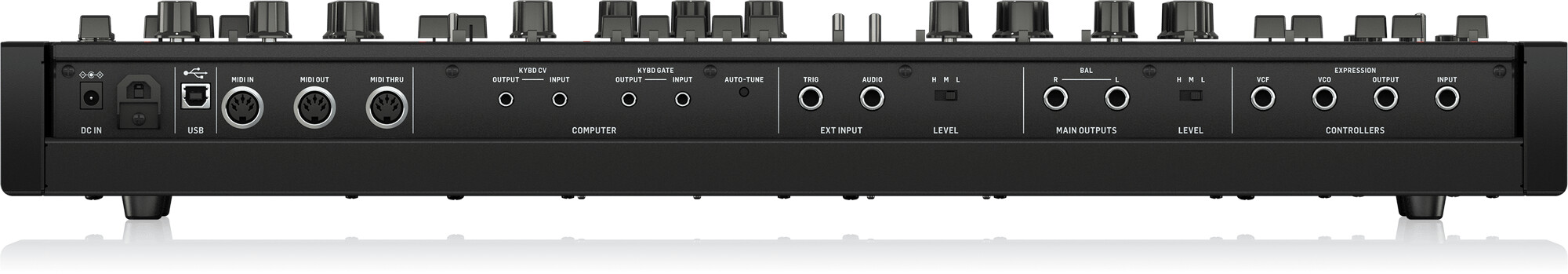

Main Output: 2x 1/4" TRS Jacks
headphones: 1x 1/4" TRS Jack
Controllers: VCF, VCO, Output + Input on 1/4” TS Jacks

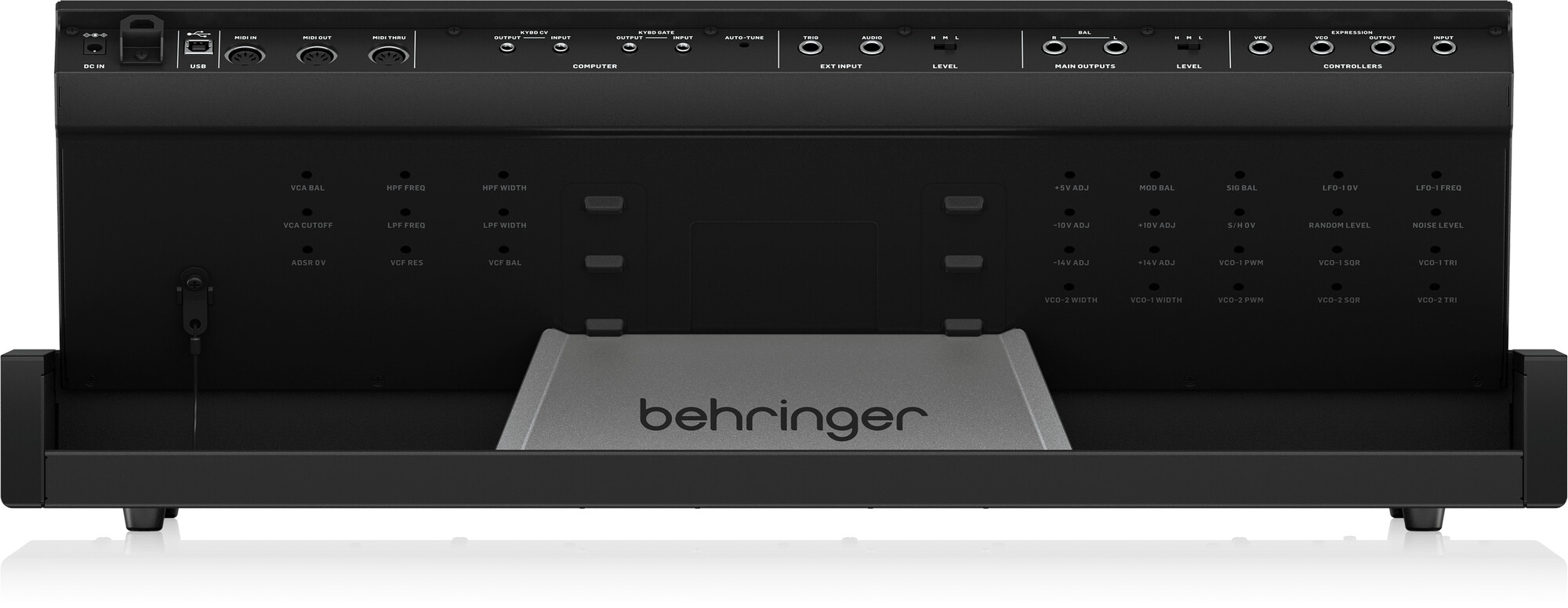

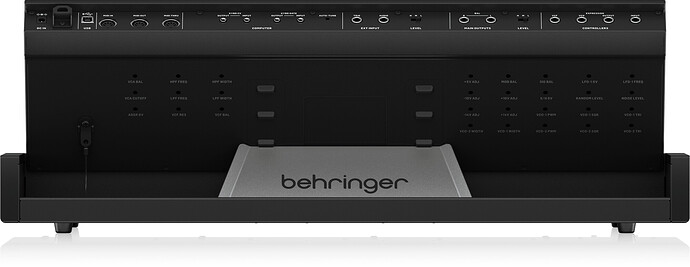

I’m actually impressed they got all those trimmers lined up back there.
