Love my new Gorilla GC-LDJC Case! One PSU to rule them all!

santhrax · August 13, 2020, 4:17pm

Hi folks,

I want to share some experience with my new Gorilla GC-LDJC Large case!
Spoiler: I don’t want to miss it again!!!

Since I have started with Analog Rytm some years ago my setup got more and more “Elektronfied”. it took some time and money to find the best stuff to fit for my setup.

OT, AR, A4, AH and Suonobuono nABC Compressor are lots of pieces so my intention was to have a case which is “ready-to-play”.

One power supply - one to rule them all!
That’s also important to me because all devices in my setup got their own power supply (limited space!).

here is the complete BOM:

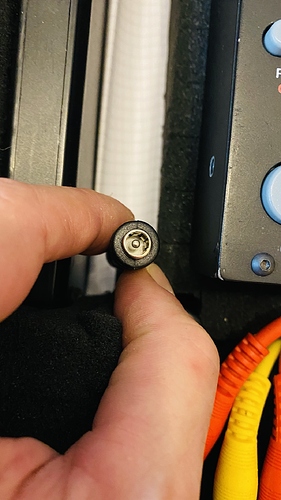

I managed to find one of these very useful

Just cut the female connector and put it into the stromverteiler.

Power Supply: went for 12V - 7.5A which is completely enough for AH, AR, A4 and OT.
(7.5A is not available right now)
http://www.leicke.eu/de/products/NT03015

also one DI-Box is included since I got some humming on some PA-setups

the Suonobuono nABC compressor is powered by a battery pack:

also using a LED USB light

here is one pic:

cheers

DonovanDwyer · August 13, 2020, 12:35pm

DUDE that is brilliant! Thanks for the breakdown of the power supply solution, I predict a lot of peeps on here will copy that.

santhrax · August 13, 2020, 2:03pm

That’s the reason why I am sharing this

Also the burn-in-test was without an issue - it ran for 12 hours the last 5 days just to ensure all is fine
I had to put out the powersupply off the case cause it was getting to hot

amaury · August 13, 2020, 2:14pm

Wow wait, today I was wondering how to power a DT, DN and AH with one plug, and now this

I’m not too tech savvy with electrical stuff, this seems doable though. So you’ve plugged the power supply (cutting the socket) to one side of the stromverteiler, attached the other cables on the other side, and good to go?

Seems there is no soldering required right?

I want something similar for home, I have too many machines and it takes a lot of sockets, would like to reduce that. Any other suggestion welcome.

Kuddos on your solution and thanks a bunch for sharing!

santhrax · August 13, 2020, 3:40pm

I am also not familiar with electrical stuff there is no soldering required but I have soldered the ends of the cables to fit more precisely on the pcb inputs.

Yes
I have attached one of these to the Stromverteiler that I don’t have to mess up the cable on the psu

Just cut the female connector and put it into the stromverteiler.

ccr · August 13, 2020, 3:52pm

A question regarding your case and the “embedding” of your machines into the foam: how do you deal with the heat developed by the AR and the A4? I have a similar case, but I am always a bit concerned avout overheating.

santhrax · August 13, 2020, 3:59pm

thanks for asking: the A4 is “quite” cool than the AH (maybe related to the name)
I have removed much foam as I can on the bottom to ensure it’s not getting hot.

in the beginning of the burn-in-test the AH was producing so much heat that I have to start picking foam until it was ok - ok means handwarm (which was not possible after the first hour ) - so I can hold it with my hand.
this setup is intend to run not more than 4-5 hours in one session so I think I will be fine

klaustrophil · October 29, 2020, 5:33pm

Very interesting! How much does it weight?

santhrax · October 30, 2020, 4:36pm

The case is not made for such huge weight so the handle isn‘t build for that.

I use following thing to „carry“ it around:

I will send an update with the weight.

phading · March 14, 2021, 4:26pm

This is amazing, thanks for sharing!

Sorry for the slight offtopic: Doesn’t Elektron Heat work decently enough as a compressor? Or do you have the other one just for the sidechain?

santhrax · March 14, 2021, 5:32pm

As you said: NOT enough
You can use the envelope Follower rondo some pseudo compression but compared to a dedicated… you can’t compare

Meriphew · March 14, 2021, 5:47pm

I’m still waiting for Elektron to partner with Voodoo Labs/CIOKS/Truetone to release a power block for powering all of your Elektron devices.

santhrax · March 14, 2021, 5:58pm

Im thinking of building my own battery (power)! plant but still afraid of weight

Jake.Spurg · December 28, 2023, 11:00pm

This looks great, can I check if this is still working well? I think I may build this

santhrax · December 29, 2023, 12:04pm

Sorry but I don’t have it anymore but it was working very well.

I sold everything and just got a syntakt
The power supply was the best option.
Also I never put it on the scale - it was heavy.

No heat problems - longest set was approx playing 6 hours
