Gtbg: OT chain-maker and MD swinger

I’ve made a little tool to simplify sample prep for the Octatrack and Machinedrum.

For the OT, it can put together a sample chain for you, and for the MD, it can convert to 12-bit and (optionally) add some padding at the front of the sample so you can p-lock or LFO-control the sample start parameter.

It’s pretty hacky but works for me. It might work for you too :slight_smile:

It’s basically a thin wrapper around SoX which does all the audio processing.

2 Likes

this looks cool! one note, it will error if there are any spaces in the paths on OSX. also no double quotes wrapping the paths.

i’m having an issue getting past this channel # error even after prepping the samples using “ot” “/usr/local/bin/sox FAIL sox: Input files must have the same # channels”

1 Like

Cheers, these bugs have been fixed.

Mono samples are now ‘upgraded’ to stereo when creating a chain.

Run “npm update” to update.

1 Like

First: Thanks a lot for this…I didn’t have yet the opportunity to try it out because…I am a completely noob in these Terminal things…
But I already love it.
Can you please help me a bit in how to set-up stuff?
I mean: I know that SoX esists - I kind-of-believe to have downloaded (…installed?!) it some time ago…uff…I am already lost…sorry :stuck_out_tongue_winking_eye:

It’s easiest if you simply unzip SoX in the same directory that you installed Gtbg in.

And as Baddcr suggests, picking up some basic command line skills is always an asset :slight_smile:

1 Like

Thanks guys! I started that tutorial.

I then tried to follow the Installing information for gtgb.

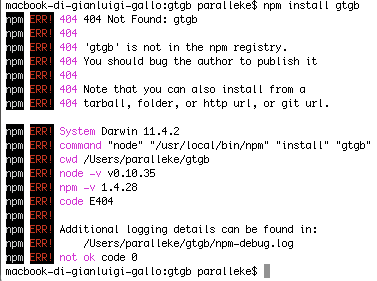

But I got errors once I prompt npm install gtgb

:sob:

Will go further next steps of Tutorial I guess

npm install gtbg

(note transposed ‘b’ and ‘g’ characters)

And good work getting into the Terminal and installing Node.js!

1 Like

Oh my shitness…I am so shitty in coding…

So, first thank you for your encouraging…I appreciate it a lot!

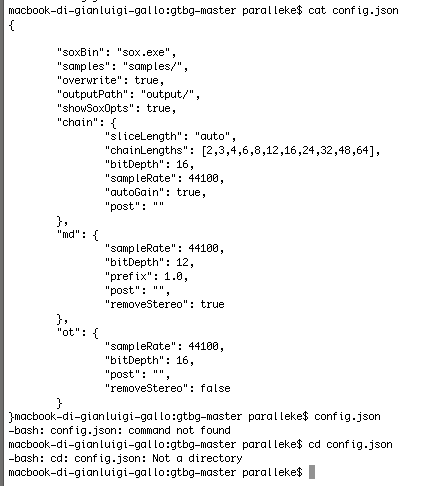

Second…I think I did ultrasmall steps further and using “cat config.json”
I can see the sox.exe line to be edited…BUT…in that Tutorial I can’t find a way to get actually in the file and edit it…


I’ll try more but if you have a hint… :stuck_out_tongue_winking_eye:

You can open the file up in a plain text editor (TextEdit, for example) via Finder.

…or if you want to go deeper into hackery, you could run “pico config.json” to open a Terminal mode text editor. Pico is one of the easier editors to get started on.

1 Like

okookok…ooooh!

This is gonna be hell :dizzy_face:


It might well be :slight_smile:

If you have follow up problems, send me a private message instead.

It looks like you’ve downloaded gtbg from Github rather than installing it using “npm install gtbg”. Delete the copy you’ve downloaded, and follow the install instructions.

1 Like

Looks like I’m late to this party but hoping the project is still working. I’ll fork it and give it a try. I’m a long-time coder but still new to javascript but should be able to help if there are any issues.

1 Like

It’s still alive :slight_smile: I added Rytm support a week or so ago. It’s all open source so go nuts :slight_smile:

1 Like

Hello this program looks like it would save so much time!
I followed the install instructions and I get this error.

Is there anything I am doing wrong?

Ory:gtbg ory$ node app chainOt --samples “/Users/ory/Desktop/Test”
module.js:339
throw err;
^

Error: Cannot find module ‘/Users/ory/Documents/gtbg/app’
at Function.Module._resolveFilename (module.js:337:15)
at Function.Module._load (module.js:287:25)
at Function.Module.runMain (module.js:457:10)
at startup (node.js:136:18)
at node.js:972:3

Ory:gtbg ory$

Thank you

O

Man, thanks for sharing this, I missed this the first time around. This looks like good stuff!

I especially appreciate this because I’m trying to build something in node myself right now :slight_smile:

1 Like

Hey,

Sorry, I need to make the install process a bit easier. For the time being, you’ll find it if you:

cd node_modules/gtbg

Throw the SoX binaries in there and you should be able to run "node app … "

Let me know if you have any problems

1 Like

Got it thanks so much will keep you posted!

O

OK went into the node_modules/gtb folder and dropped all of the sox binaries in there. Still the same error. I should add I used the most current version of node.js 5.0.0. Maybe I hould I downgrade?

Thank you
0

The same error? Once you use ‘cd’ to change into that directory, do an ‘ls’ to list the directory contents. You should see ‘app.js’, along with ‘chain.js’, ‘config.json’ … etc. If you don’t, you’re in the wrong place.

If you’re more familiar using the Finder, find the directory containing those files and use CMD+I (Inspector) to get the path (or drag and drop the folder to the Terminal).

1 Like

Hi LMLMLM,

thank you for this super useful tool. I did some tests and everything is working fine here.

I have a question about the chainLengths parameter. I can’t understand how it works.

If I have a folder with 16 samples, and I want each chain to be 8 slices long should I run $ node app chainOt… --chainLenghts 8 ? Or is the chainLengths parameter supposed to work differently?
