3D printed VESA adapter for Octatrack and Analog Four

rosiusyves · July 11, 2024, 9:15pm

Just printed a VESA mount adapter. Almost perfect… just a bit of sideways movement I need to get rid of.

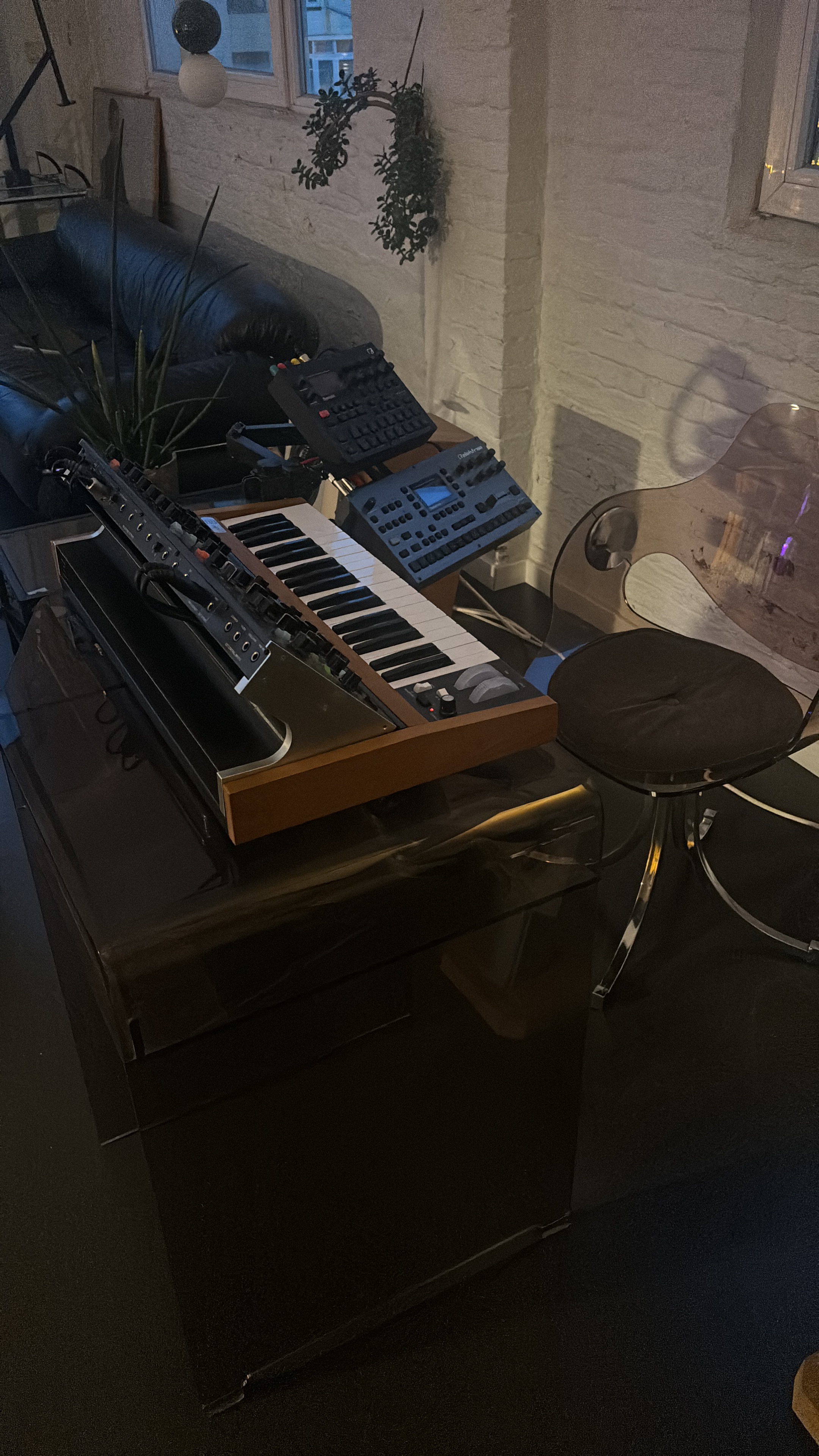

V1 turned out great Turned dark outside while working on the project

Augenadler · July 11, 2024, 9:29pm

Pretty nice. Mind sharing the STLs?

rosiusyves · July 11, 2024, 9:32pm

I’ll upload them tomorrow

rosiusyves · July 12, 2024, 7:47am

Here you go

Included a quick test strip so that you can avoid printing the entire model. It should fit the screw holes at the side.

Octatrack VESA v1.stl (338.0 KB) Octatrack test strip distance v1.stl (10.4 KB)

Augenadler · July 12, 2024, 5:28pm

Nice, thank you.

rosiusyves · July 13, 2024, 9:00am

Just saw the small test strip laying around… I remember it being 1.5mm too long… the other model should fit

deeptropix · July 13, 2024, 9:27am

thank you for sharing

rosiusyves · February 6, 2025, 7:39am

New version!!! Much more sturdy and prettier

rosiusyves · April 30, 2025, 7:18pm

Working on VESA adapter for Analog Four now

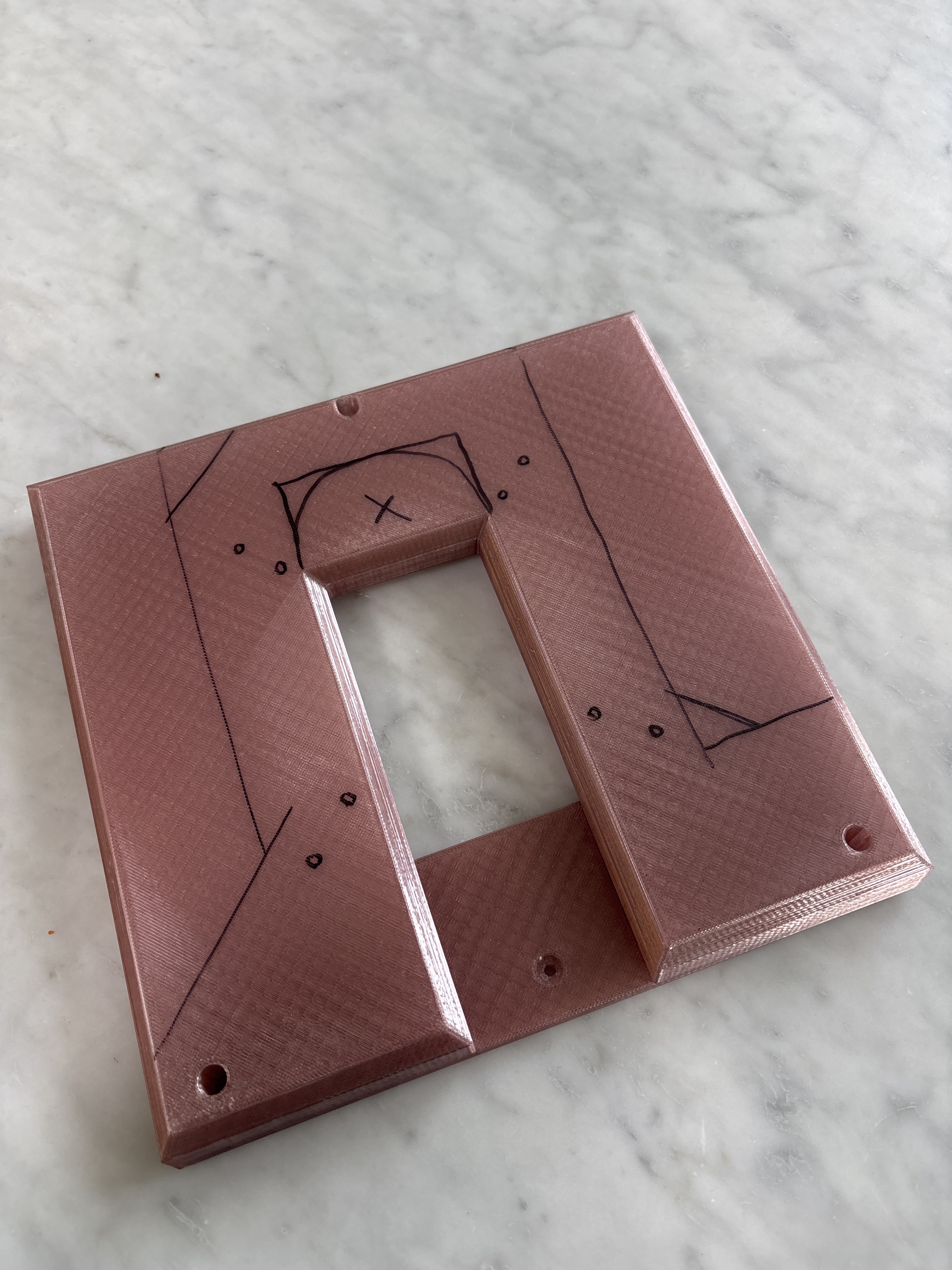

Small test strip for dimensions. Looking good for a first try!!

thumperjack · March 16, 2026, 5:10pm

following

rosiusyves · March 27, 2026, 3:17pm

Hit a snag while printing the full version some months ago… didn’t account for enough room for the sliding motion…

Also, the print took a few hours… so I was sketching a bit on the model. But certain familiar form appeared in the proces.

When I have the courage to have another designing session I will keep posting here

Any good ideas… shoot!

Btw… it fits nicely on the A4

adb.909 · April 29, 2026, 5:03am

mind sharing the .stl for the new version? would love to give it a try!

Noizeguerilla · April 29, 2026, 5:18am

Super nice project, if stability and bending are a problem eventually, there is a nice technique where you leave some space inside the print open and while printing drop a metal / carbon rod into the print to stiffen it.

rosiusyves · April 29, 2026, 5:27pm

Here you go!

Octatrack VESA.f3d (199.4 KB)
Octatrack VESA Right.stl (95.2 KB)
Octatrack VESA Left.stl (95.2 KB)

I still use my first print, still going strong!

Some things I would like to improve:

Better hole positioning and format for the screws
Thicker sides (weak point where the side panels join the main body)
Clearance for the little rubber feet under the Octatrack

Otherwise, the print is a success! Sturdy, easy mountable and I kind of like the thickness of it

I was also thinking about slanting the lower block so that you can place the Octatrack at an angle on a table/desk.

Good luck printing!!! Let me know how it worked out for you!
