Aside from the case material, this thing is really good. I’ve had the op-z before so it feels intuitive to me. No issues with the buttons. Love the pot features, being able to input & move between ‘clips’
It’s cooled my desire for an xy.
5 Likes
Has anyone used Justin Joe’s RNBO MIDI Commander Patch and it’s template for the Seqtrak?
Demo
Just got my Seqtrak and this looks interesting
3 Likes
I know people say it’s a Drum and Bass box, but IMO this is the best bread & butter synth of all time. The sequencer is cool, but I now sequence it from my Oxi and use the iPad to select and modify the sounds.
I’ve used it iPad-free too, just on the go. All you need is their two 30 min tutorials and then just kinda hunt around and mess with it until it clicks.
Tip: Fits in the Roland boutique line soft case.
Tip #2: Back up regularly. Don’t overwrite over previous backups.
Tip #3: Any synth or sound device that’s USB-powered may require a USB isolator. Another option is to run from a power bank when recording.
4 Likes
Having 9 tracks of full 8-element AWM2 synth engine accessible via sysex editors for sound design, with those edited sounds being saveable as favorites in the normal way, makes this thing gold for its size imo.
2 Likes
In case anyone missed it, firmware 2.0 introduces the drum kit track type and gives you the ability to convert any drum track into an AWM synth.
1 Like
Forgive my ignorance, but what type of sounds does AWM2 excel at?
AWM2 is basic sample-based rompler type sounds though you could certainly use it as quasi-virtual analog. Good to have around.
1 Like
Bread and butter stuff. Just think of it as a really nice supermarket synth. Several Refaces into one.
2 Likes

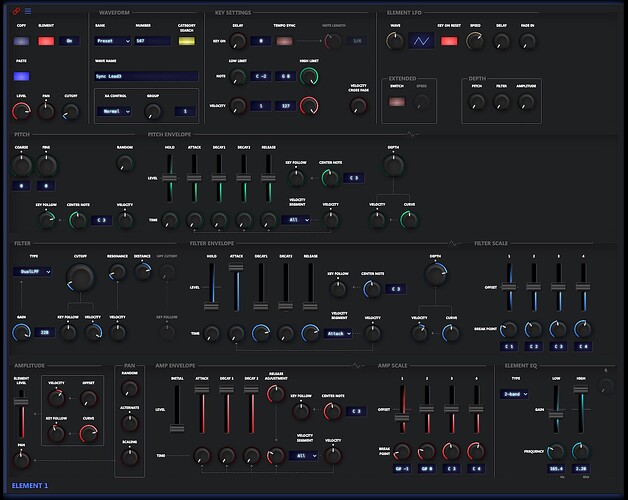

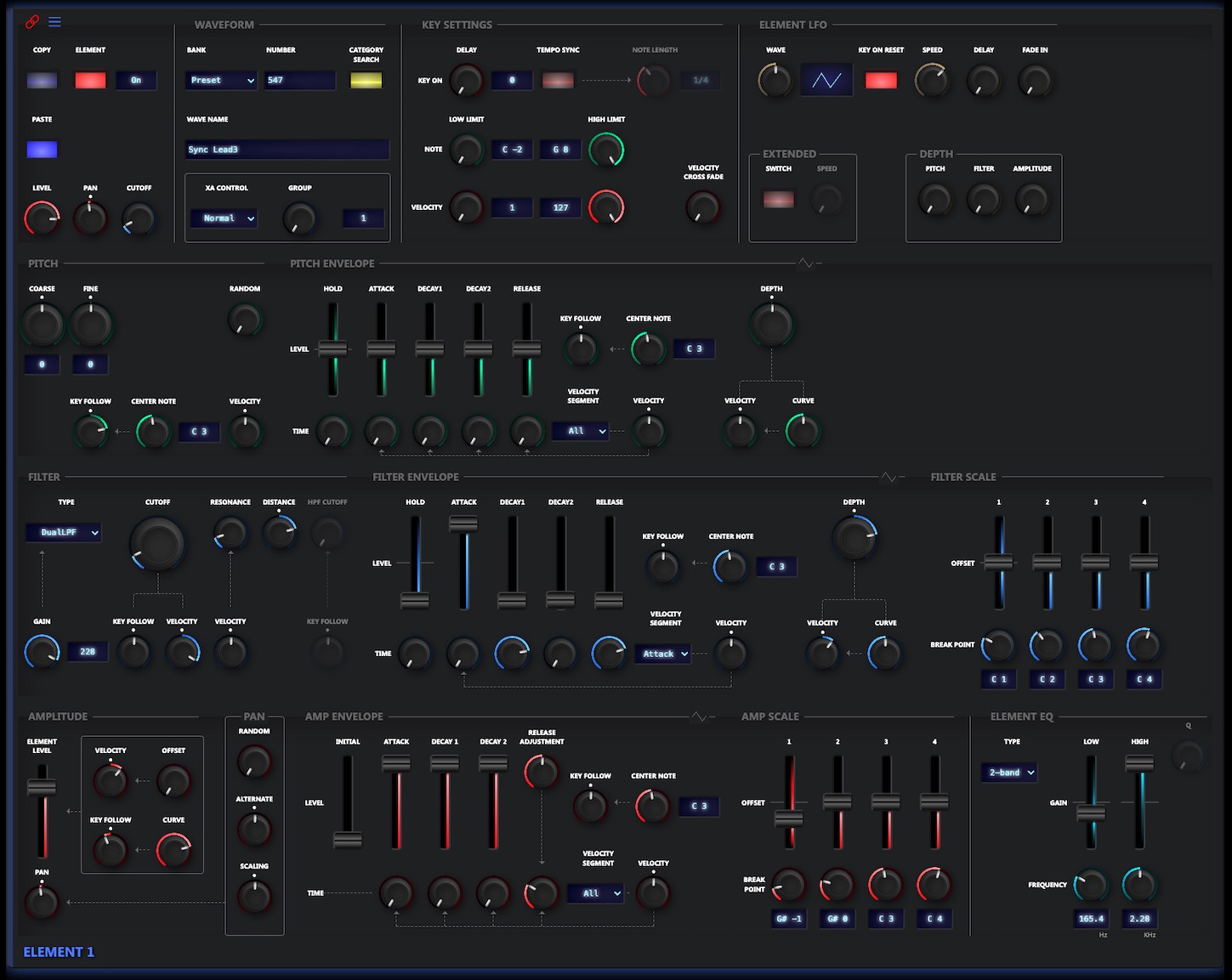

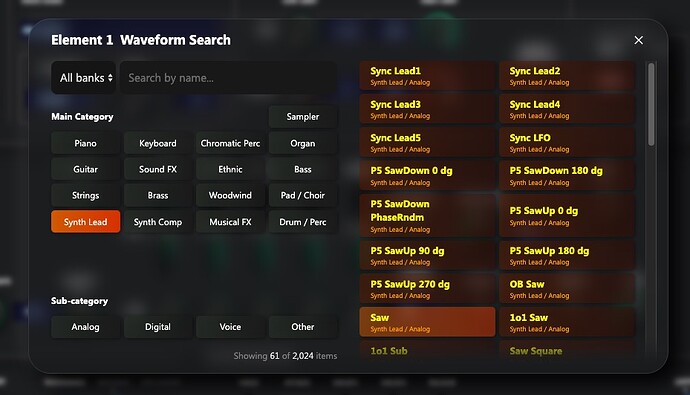

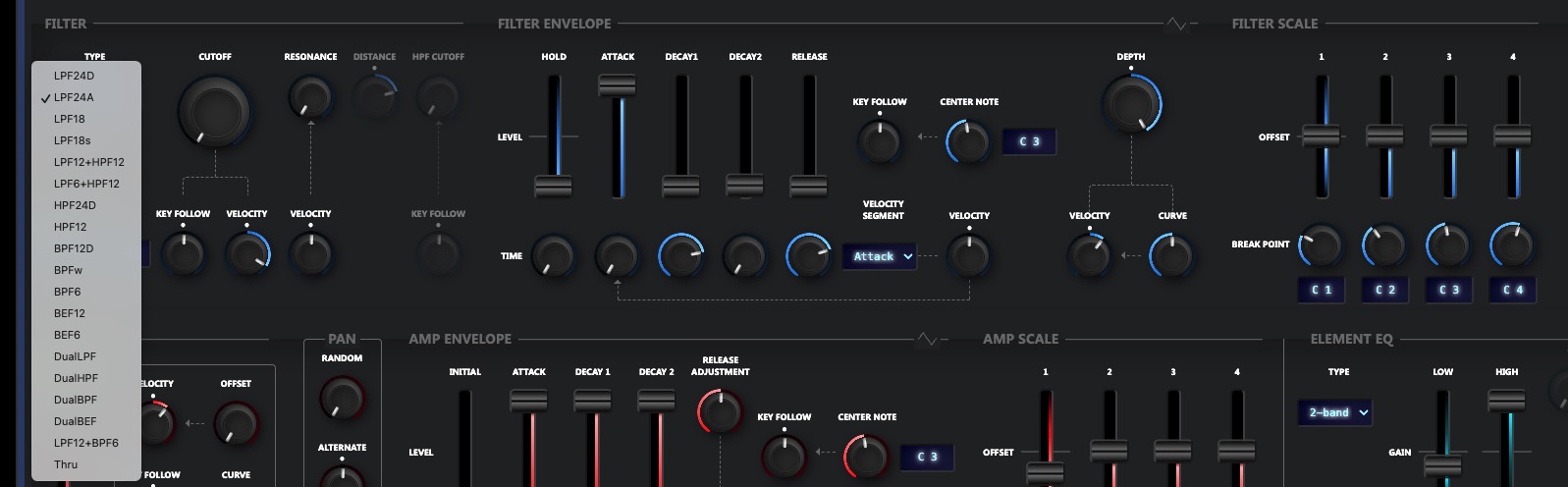

It can do pretty much anything as there are 2000+ oscillator waveforms/other samples, 18 filter types (including a nice enough analog model), and LFO (into audio rate, up to ~1.3kHz) plus multiple envelopes - along with different ways to use those 8 elements like layering, key/velocity ranges, round robin etc. Here’s a pic of the parameters in a single element, and the filter types (from kdx editor) :
5 Likes
Did any of the refaces give access to the entire AWM2 engine?
Has anyone found a way to loop user samples in the AWM2 engine?
1 Like
The only Yamaha Reface which uses AWM2 engine is the CP (here are the specs for all of them):
And the CP isn’t able to change parameters of it, just use the included effects, that’s all.
The YC uses AWM engine for organ drawbar style harmonics combinations, not much as well.
1 Like
No small form contemporary AWM2 devices known, only Yamaha MODX class keyboards.
Thanks, but AI is useless - especially when it’s not even for the device itself.
seqtrak isn’t using the embedded loop-points in my samples - I’m thinking the app is stripping out that data when it sends it over to the device itself.
Thanks for that. I was wondering if there are any other small/cheap devices have full AWM2 in them as that is a massive plus for the utility of this to me…
2 Likes

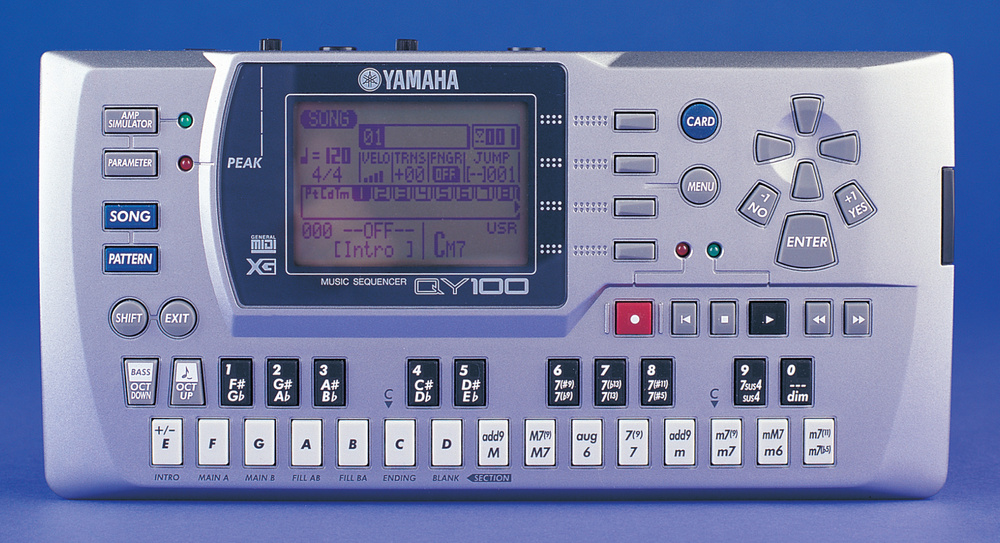

Of course it is existing. Since 2001. Here:
Look at it’s specs:
- Synth engine: AWM2
- Sequencer capacity: 20 Songs to a maximum of around 32,000 notes.
- Note resolution: 480 pulses per quarter note.
- Polyphony: 32 notes.
- Record modes: Real‑time replace, real‑time overdub, step‑time record.
- Song construction: One Pattern track, one chord track, one tempo track, 16 sequencer tracks.
- Pattern construction: up to eight Phrases per Pattern.
- Patterns: 768 preset Patterns (128 preset Styles in each of six sections) 384 user Patterns (64 user Styles in each of six sections).
- Sections: Intro, Main A, Main B, Fill AB, Fill BA, Ending.
- Phrases: 4285 preset Phrases plus 48 user Phrases per user Style.
- Chord types: 26 types.
- Chord templates: 99 preset chord templates, plus one user chord progression per Song.
- Preset voices: 547 normal voices, 22 drum voices.
- Multitimbral capability: 24 parts.
- Effects types: reverb (11 types); chorus (11 types, variation (43 types).
- Amp simulator setups: 23 setups (18 guitar setups and five microphone setups).
- Effects blocks: preamp block (for guitar) or delay block (for microphone), plus chorus block and reverb block.
- Micro keyboard: 25 keys (two octaves).
- Connections: MIDI In/Out, To Host computer connection, stereo out, mono in, footswitch.
And, in addition to all above, you can unlock a lot of possibilities with this small wonder:
4 Likes
I have a QY-70, but I meant current.
I investigated the issue.
I was not able to find a way to import a looped sample into a SYNTH TRACK.
Importing a looped sample into a SAMPLE TRACK is easy, but there is no easy way to play that sample polyphonically OR chromatically with the integrated keys or via MIDI.
So for now looping waveforms in SYNTH tracks is reserved for preset waves, and not user waves, unless someone can demonstrate otherwise.
1 Like
Probably the MX49 is closest cheap AWM2 predecessors.
2 Likes
Could anyone tell me about the polyrhythm / polymeter capabilites of the seqtrak?
AFAIK it’s possible to set different lengths of patterns for each track. The manual also states something about pattern quantisation which I don’t fully Understand.
I wonder what happens if you play patterns of different lengths - do they just continue looping or is there any point in time where they resync similar to Elektron Boxes?
1 Like
they just continuously loop as per their track length settings - no reset that I can see. Launch quantize is when the pattern will actually start playing after it has been selected by either track knob press and turn or track knob hold+step button (vs immediate start with just track knob turn).
1 Like
