" ! " why does the OT's crossfader change some parameters on the Machinedrum?

big_baobab · September 18, 2020, 9:09am

OT is master tempo and main sequencer of the set, the MD’s sounds are triggered by midi notes.

With certain MD’s kit the OT crossfader changes a single parameter on a certain MD track (sometimes the snare length, the hat gap etc) without a clear logic, I like that and it allows me to have more textured drum sounds but I would like to understand if I can control this behaviour as I like.

Has anyone of you experience with this feature/bug/whateveritis?

thanks

Schnork · September 18, 2020, 10:07am

Crossfader sends CC48. Set Audio CC Out to ‘int’ to turn it off.

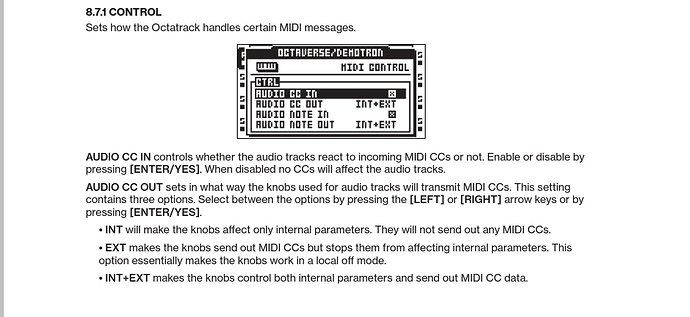

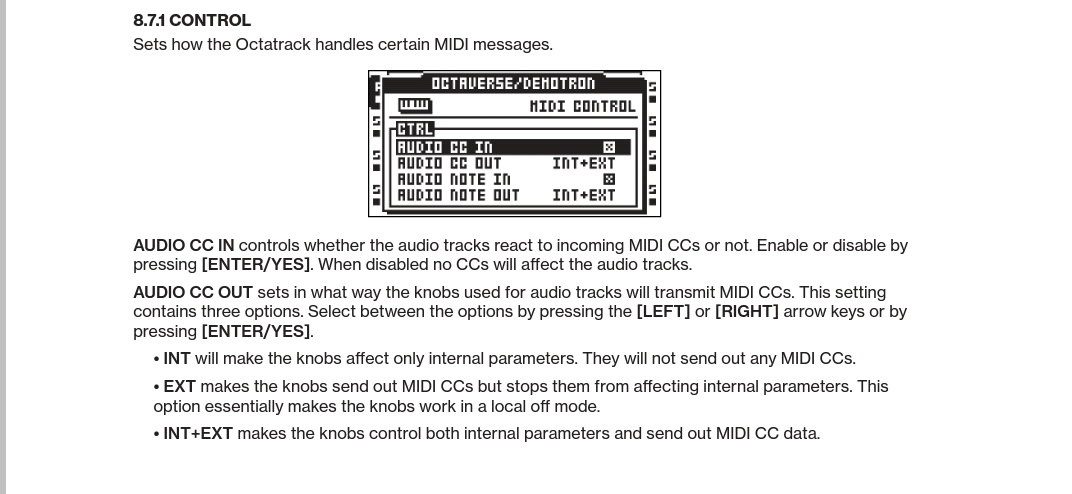

Project -> Midi -> Control -> Audio CC Out.

big_baobab · September 18, 2020, 10:14am

thanks, i’m going to check this out, i use CC to modulate the md sounds with the octa’s lfo so I don’t want to turn the whole settings off

Schnork · September 18, 2020, 10:18am

This setting does not affect midi tracks at all.
It’s only relevant for audio track parameters (encoders, crossfader).

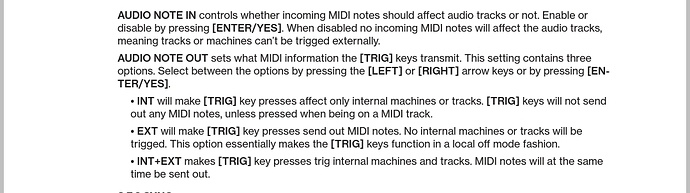

OT mk1 pdf manual page 39, 40
