hello there im having issues to connect my behringer pro 1 via cv to my analog four mk1 -
here is how im doing it :
pro 1 osc cv to analog four cv a and this is type pitch v/oct
pro 1 gate/clk to analof four mk1 cv c and this is on gate
the problem is im not getting any sound on the pro 1 and the keyboard of the analog four dont do any on the cv trak .
What type of cables are you using?
I’ve accidentally put a TS instead of a TRS (losing the ring), which will make your configuration not work.
I use a similar cv setup with an SEM.
1 Like
I just figured this exact thing out like 2 days ago.
on the pro-1, is the mode switch turned to repeat/ext?
are you running audio separate, or pro-1 thru the a4?
hey tnx for the reply . separate and yes the repeat/ext switch is on .
now it works the sequencer but i have the same note on all the steps and the keyboard on the analog 4 always take the same note too .

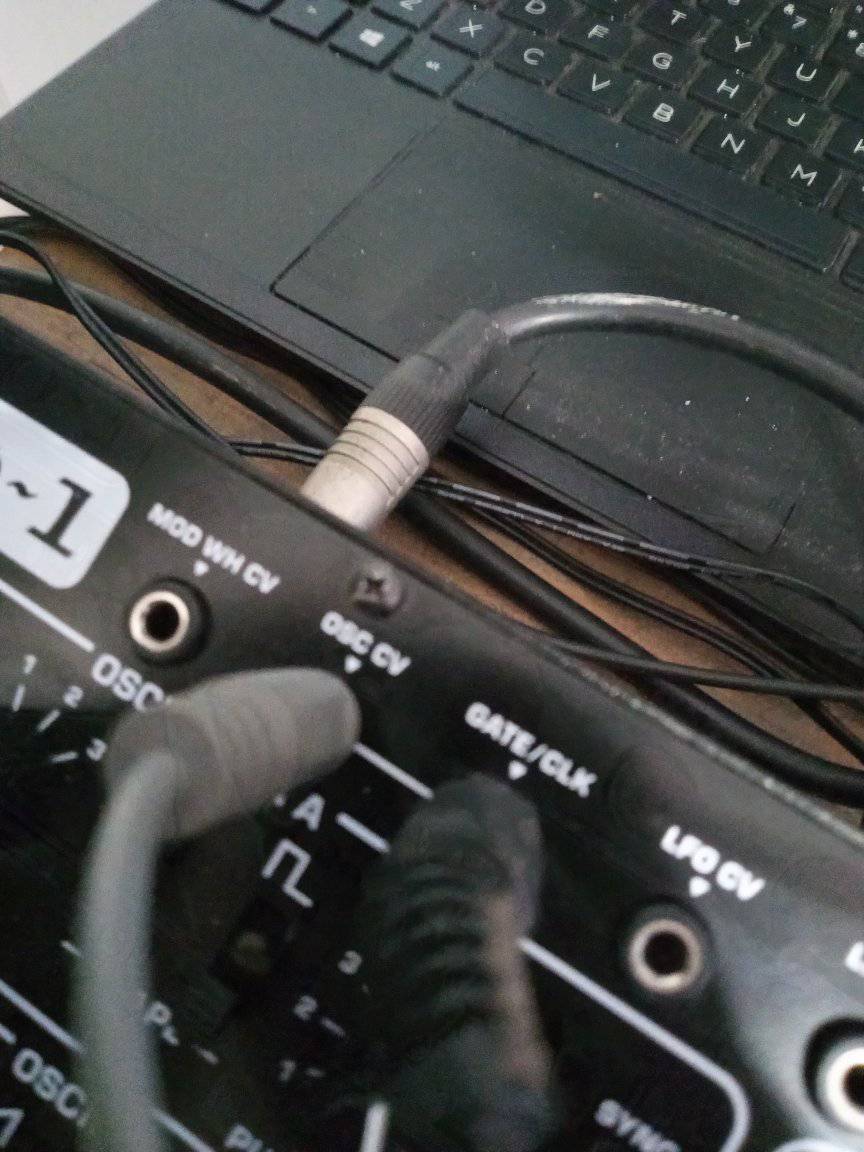

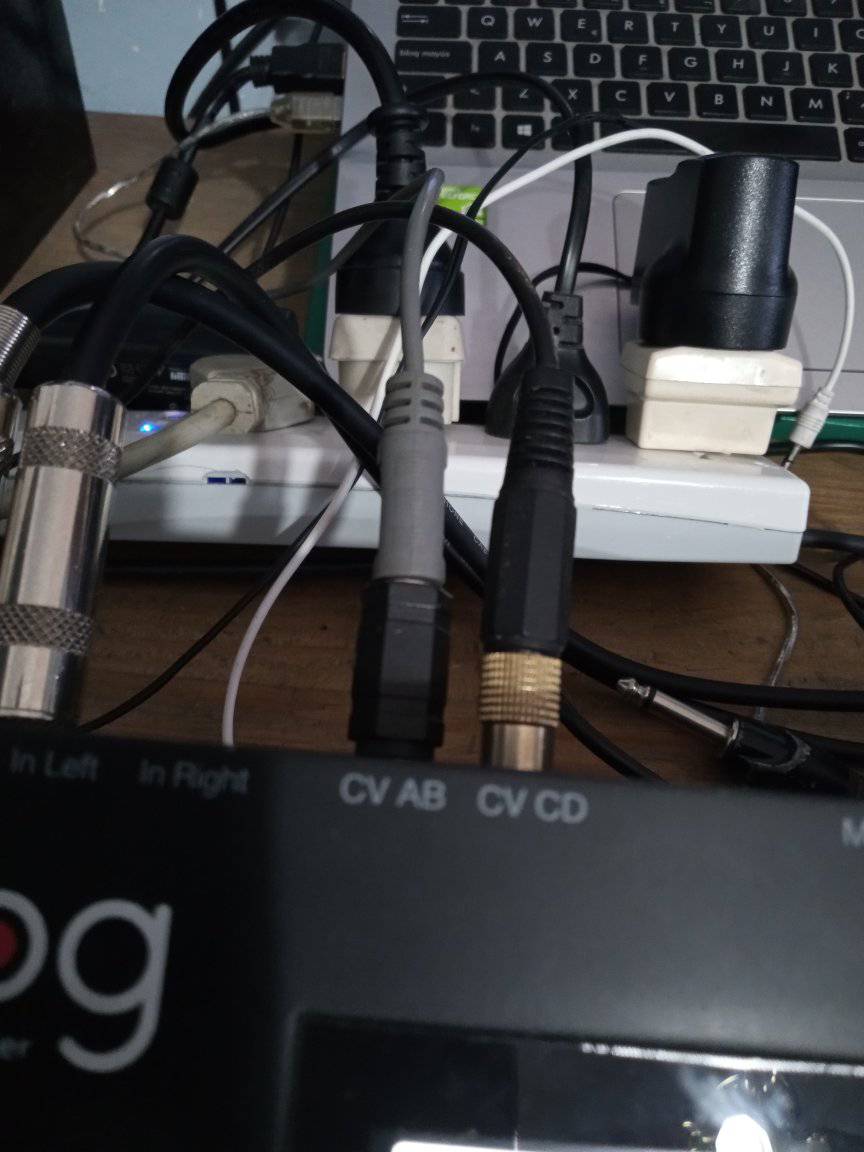

grey cable on pro 1 osc cv to cv a of analog four : pitch v/oct
black cable pro 1 gate/clk to cv c of analog four : trig ( in the other modes dont do nothing)
solved : it was the cable ! i try another one and works cool . tnx for reply
1 Like
Nice!
