I’m building my template and I have everything working great, I can sequence my minimoog and my ob-6., got the Keystep working with everything I can’t however program change the OB-6. What am I missing? OB-6 is receiving note data, param receive is set to CC ( nr doesn’t seem to work either) anyone got this dialed in?
I want to be able to set it up on the midi track here, so I don’t have to go to the synth, Want full OT control. Ob-6 is on channel 3 it is receiving notes, just to program changes
If you want the OT to change the OB-6’s program each time the OT changes pattern, then do the following:
In the OB-6’s Global settings:
set the MIDI channel number
In the OT’s PROJECT > MIDI > SYNC menu:
activate PROG CH SEND and set the Channel control underneath it to match the MIDI channel number of the OB-6.
The OT will now send its pattern number to be the OB-6’s program number (pattern A01 is program 1 etc). This means that you would have to organize your programs in the OB-6 very carefully.
Basically, yes.

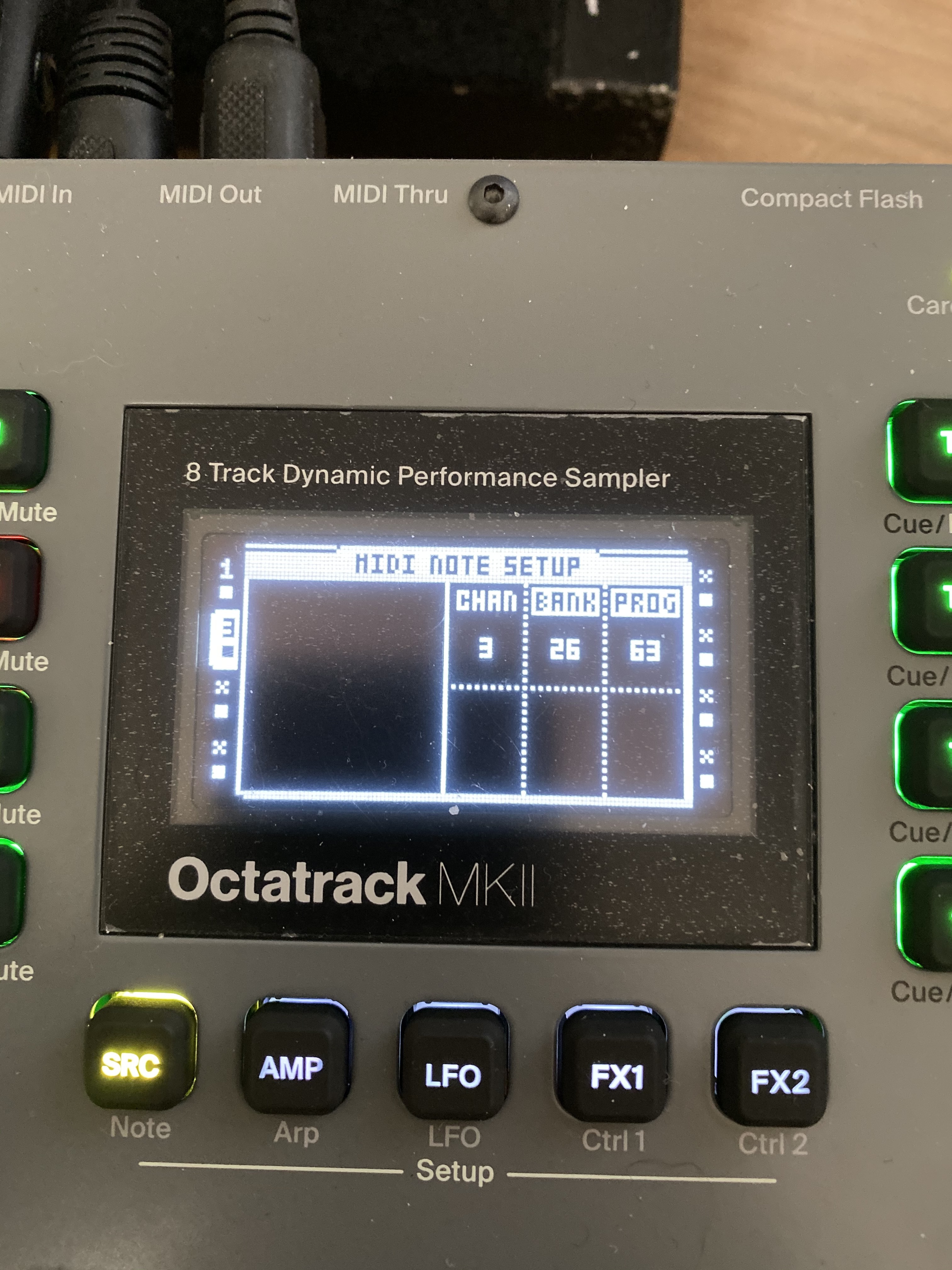

In the MIDI NOTE SETUP page that you showed, set CHAN to be the MIDI channel number of the OB-6 and set PROG to be the program number that you want on the OB-6.
These settings are stored in the Part that is associated with the OT’s pattern, so you need to save the Part.
Now when you make the OT change pattern to a pattern that is associated with a different Part, the Program Change message will be sent. This is more flexible than the first method, but you have to remember to set up and save the appropriate Part with each pattern. There are only 4 Parts to share between the 16 patterns in a bank on the OT.
“The OT only uses CC 0 for bank changes. To get bank changes that require CC 32 (probably about half the gear out there?), you have to set a Midi Control for CC 32, move that knob the right bank, then send the Program Change again by swapping. I have a ticket in to Elektron about this. I’d suggest putting one in as well.”
I’m guessing I go into the midi control section ( where you would adjust parameters on the synth) and dedicate a CC message to 32 which would then change the bank, but how do you apply that to the midi note set up page?
Set BANK to ‘OFF’ in the MIDI NOTE SETUP page: it serves no useful purpose with the OB-6.
Instead, use the CTRL1 SETUP page on the OT’s MIDI sequencer track to specify CC 32 on one of the knobs and then use the corresponding knob on the CTRL 1 MAIN page to set the Bank number that you want (in the range 0 to 9).
I know you hate to read manuals but it will be useful if you read the instructions in the MIDI SEQUENCER chapter of the OT’s manual.
If you find the workaround too complicated then you could consider simply putting all your favourite OB-6 programs in one bank.
