Octatrack MK2 with MC6 midi controller mapping issues

Elektron Gear Octatrack
1

Hi all,

I hope everyone’s all good this Monday morning.

I’m having a few mapping issues on my MC6 midi controller, If anyone has any experience or knowledge they’d like to share, that would great, as this is a little beyond my pay grade.

I want to be able to cycle forward and back through Trigs 1-8. Then once highlighted and selected I would then like to hit record/stop for that specific Trig only.

I’ve managed to set up the following on the MC6:
A - Rec/Stop (Midi channel 1 only)
B - Forward cycle through Trigs 1-8
C - Reverse cycle through Trigs 8-1

But I can’t link the Rec/Stop and Forward/Back cycles together. Is there such a way?

I’ve set up my Octrack MK2 this way no problem by using REC1 for Record/Stop. And I cycle through the Trigs by hitting and highlighting the numbered Trig I want to record to.

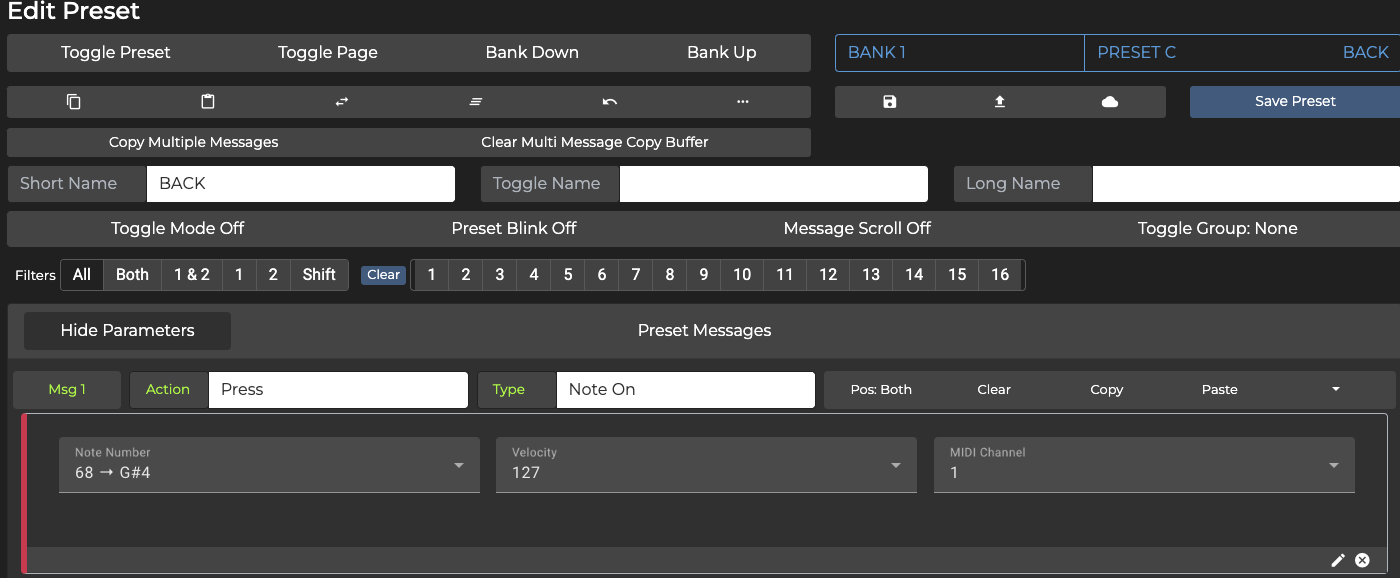

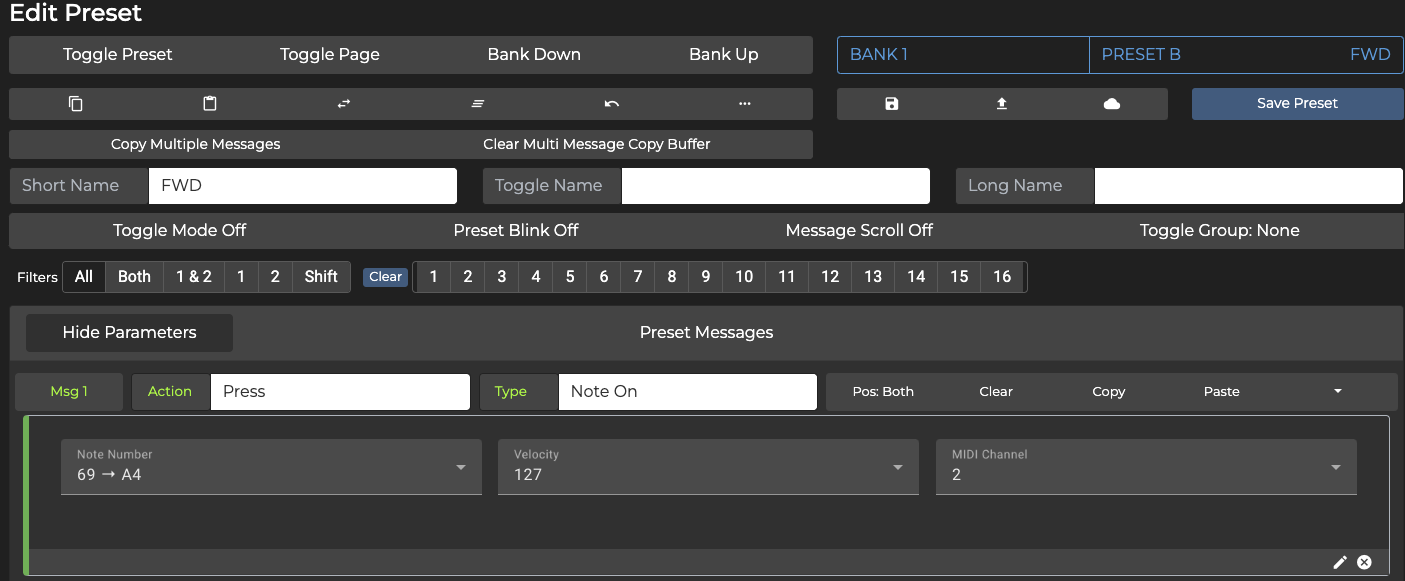

I’ve attached a few screengrabs so you can see how I’ve set up the three actions on the Morning Star software.

Screenshot 2024-10-13 at 20.48.25
Screenshot 2024-10-13 at 20.48.251400×578 48.4 KB
Screenshot 2024-10-13 at 20.48.19
Screenshot 2024-10-13 at 20.48.191405×581 48.3 KB

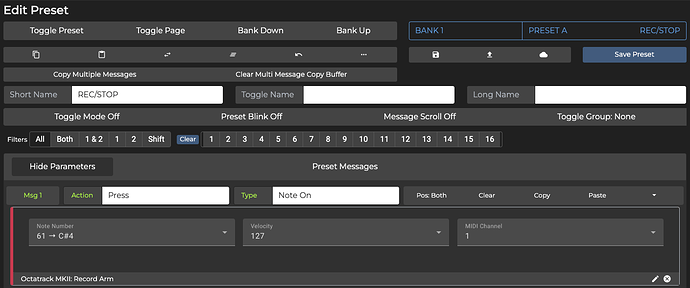

Screenshot 2024-10-13 at 20.48.09
Screenshot 2024-10-13 at 20.48.091409×589 51.7 KB

Thanks in advance.
Dan

2

Just in case anyone had any ideas. Not to worry as I’ve sent the midi pedal back so wont be using this method.

3

@SoundToucher what do you mean by Forward and Back ?

Forward cycle through Trigs 1-8

Track selection I suppose ?
Trigs are the 16 sequencer steps, or trigger tracks…

These notes are for track selection.

G#4 (68) Active track up A1 (33) Sequencer Stop A4 (69) Active track down

If so, I don’t really understand what was the MC6 mapping problem…

At first I thought you were talking about reverse playback or sequencer reverse…:content:
