Midi Clock to Mutable Yarns

The Lounge Other Gear
1

Hi all, so I have a compact modular setup and recently picked up a Bluebox.

What I want to do is clock Marbles from Bluebox via Yarns so everything is multiples of the Midi clock.

Bluebox is outputting Midi clock (checked) and Yarns TEmpo is set to EXternal… but I can’t find a LAyout that’s outputting a clock signal to run from Yarns to Marbles.

Is there something I’ve not enabled on Yarns?

2

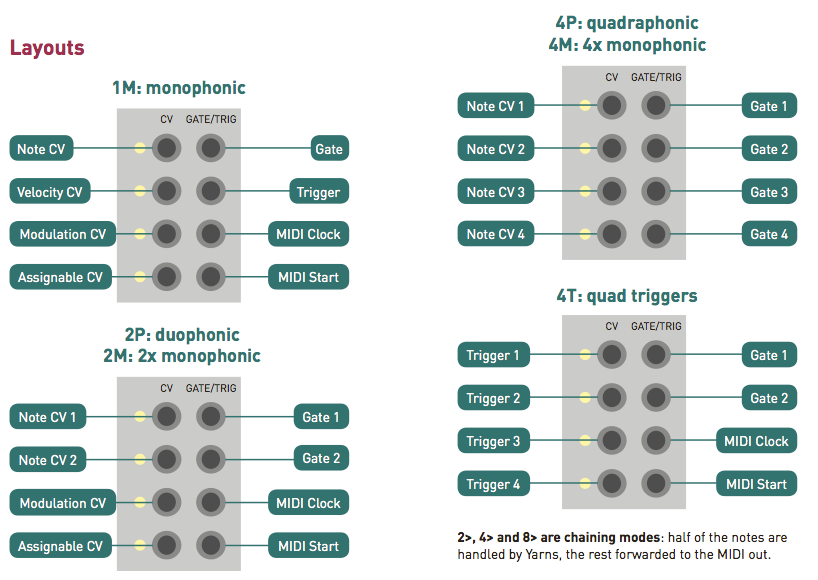

A bunch of them should output MIDI clock and start on Gates 3 and 4:

image818×580 78.7 KB

3

That was my plan. None of them output anything on gate 3. Made me think that I had missed some setting

4

Are you getting any output from Yarns? The Bluebox must use TRS MIDI. Are you using the correct TRS MIDI standard with it? I ‘think’ they’re type B.

5

I’ve confirmed that the Midi clock is being output by Bluebox using my MPC Live.

If I turn on Yarns LFO it outputs the LFO.
