41

Cant view the video but:

Yes a little transverse play is normal. If its more than a tiny bit then you can open up the OT, and tighten any loose screws on the assembly. (This will void your warranty most likely)

Or raise a ticket with elektron support and get them to fix it.

1 Like
42

Apparently there is an autorisation request to see the video…

43

Oops, sorry about that…how about now? Can you see it?

44

Sorry my mistake, you might be able to see it now…

45

I could. Doesn’t seem problematic. You can check crossfader’s behavior in test mode. FUNC + POWER ON, TRIG 1, move crossfader.

There is also a calibration process.

46

Ok that’s good to know, I don’t have another one to compare it to so thanks for that. It functions just fine but just feels a bit cheap in comparison to the rest of the build

47

It’s an optic crossfader, I think, so it moves freely. I understand why one might associate that with cheaper builts, but it’s really not a weak part on the OT.
There was a contest going on here last year or so: slam the crossfader as hard as you can and make it travel back and forth. Farthest wins.

2 Likes
48

Correct.

The part holding the mirror sits in a little trolley that runs across 2 metal bars. There is a magnetic grub screw that can be adjusted to make more or less travel resistance. I took the grub screw out of mine.

So yeah, normal. And definitely not cheap.

1 Like
49

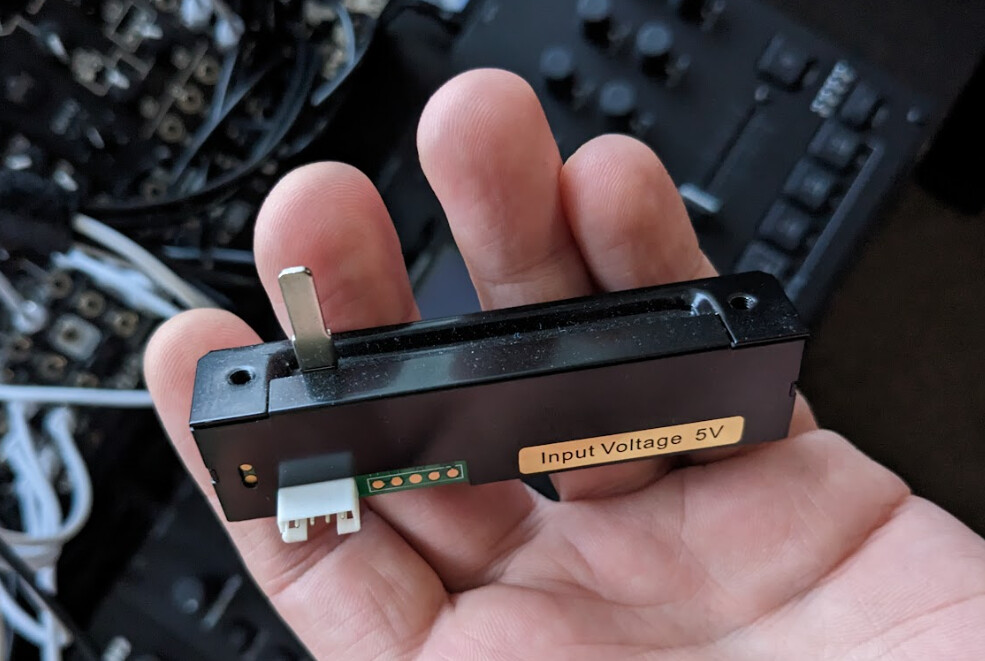

Hey man I assume you’re talking about a MKI? There is no adjustment on a MKII crossfader, it’s a self-contained unit - I happen to have one here!

image985×661 130 KB

I think the play looks normal to me @Ronan87 - as long as it’s not ‘catching’ when you slide it from the lateral movement :+1:

1 Like
50

Seems that way huh. I had no idea they put a different cross fader in the MK2 units. Shame. The MK1 cross fader is outstanding.

1 Like
51

I don’t think I’ve ever heard anyone say it was a step backwards - they’re functionally identical - I think most of the top-board parts are different from the MKI.

52

Can confirm. Nate is seductive. Especially to the ears.

(I meant he makes zexy music)

1 Like
53

Recording this for posterity - there’s a first time for everything!

1 Like
54

Hey Nate! Thanks for the reply, good to know :ok_hand:it does catch a little bit from time to time but as long I’m not too rough with it it’s ok. Cheers

1 Like
